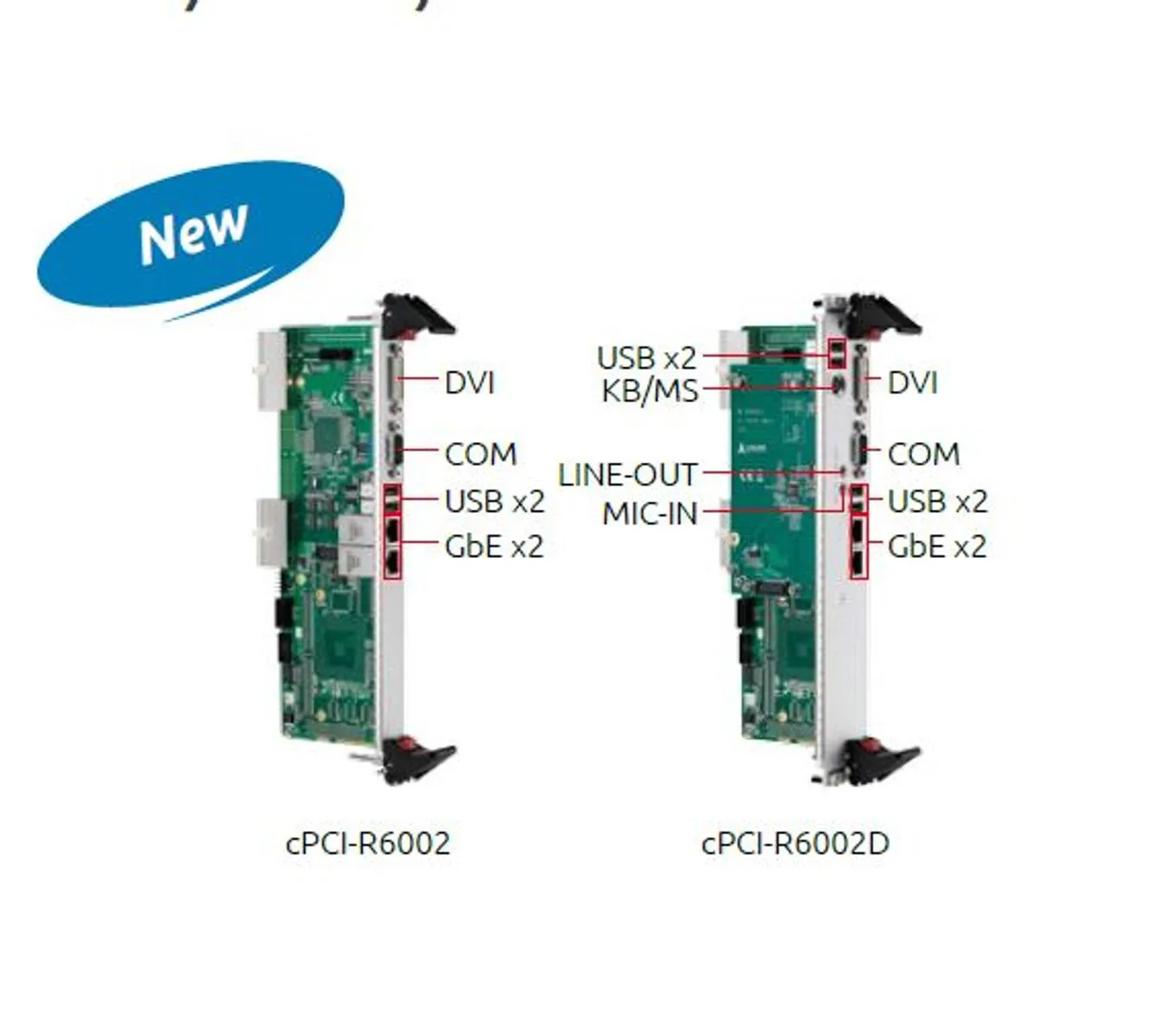

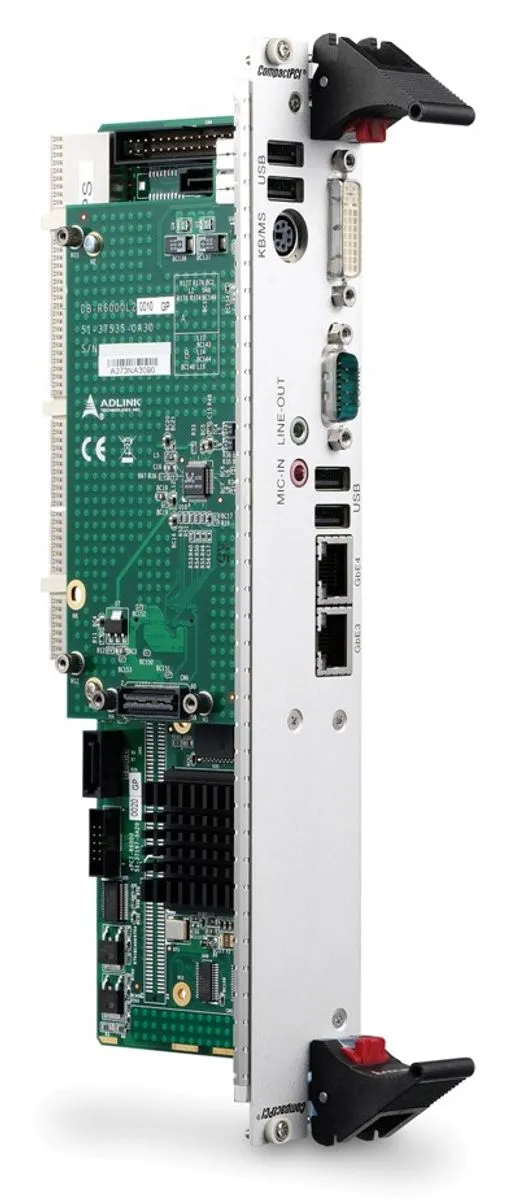

The cPCI-R6002 Series is a 6U CompactPCI rear transition module (RTM) in single/dual slot width (4/8HP) form factor featuring rich IO interfaces. [END OF LIFE} The single slot cPCI-R6002 supports 2x GbE, 2x USB 2.0, 1x DB-9 COM, and 1x DVI-I on the rear panel. The dual slot cPCI-R6002D supports 2x GbE, 4x USB 2.0, 1x DB-9 COM, 1xDVI-I, PS/2 KB/MS, and audio ports on the rear panel. For storage, the cPCI-R6002 provides 2x 7-pin SATA connectors and the cPCI-R6002D offers an additional 2.5" SATA drive space via daughter board. Onboard IO includes 1x 5-pin USB pin header and 1x 10-pin serial TX/RX pin header.
