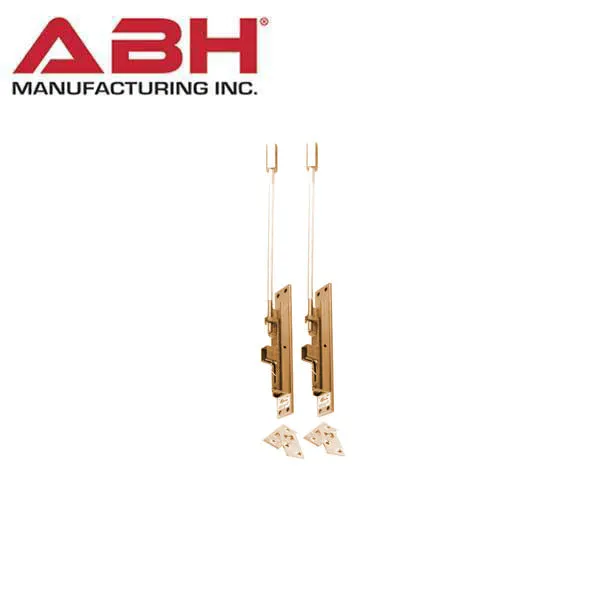

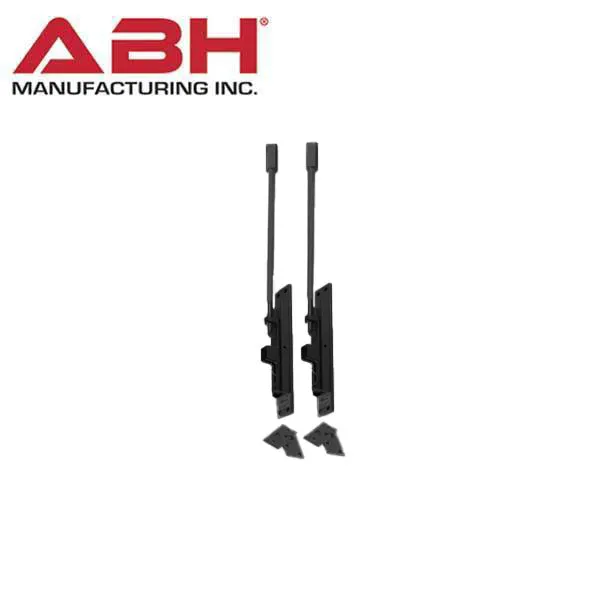

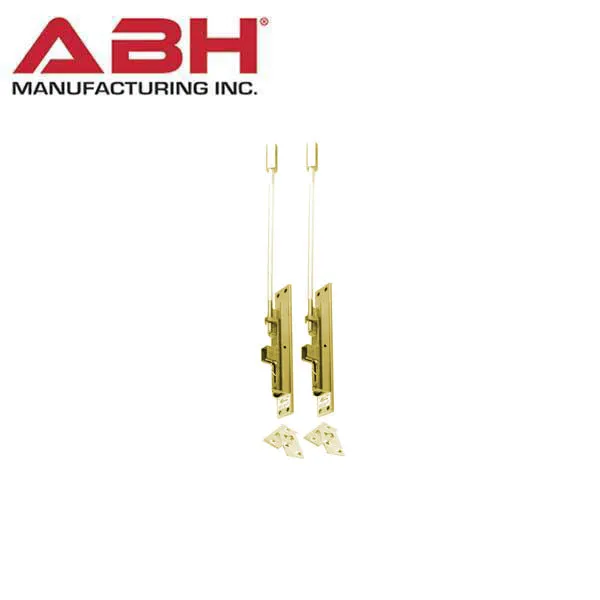

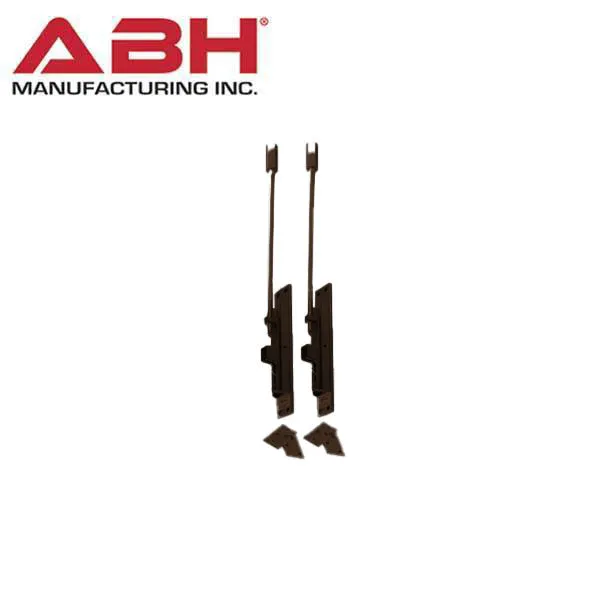

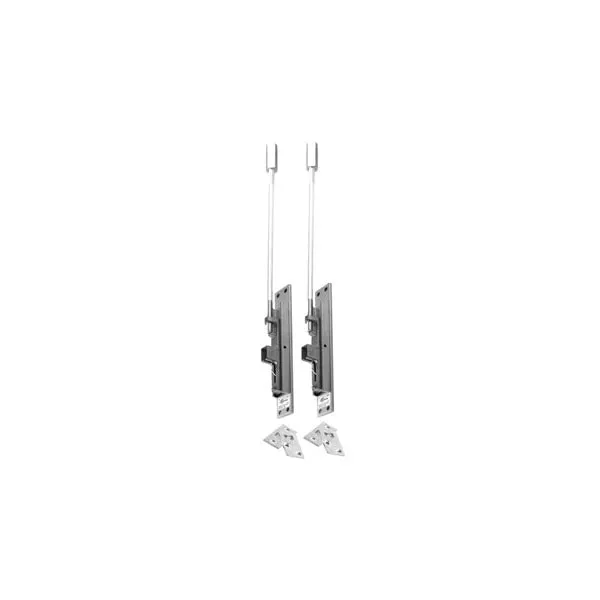

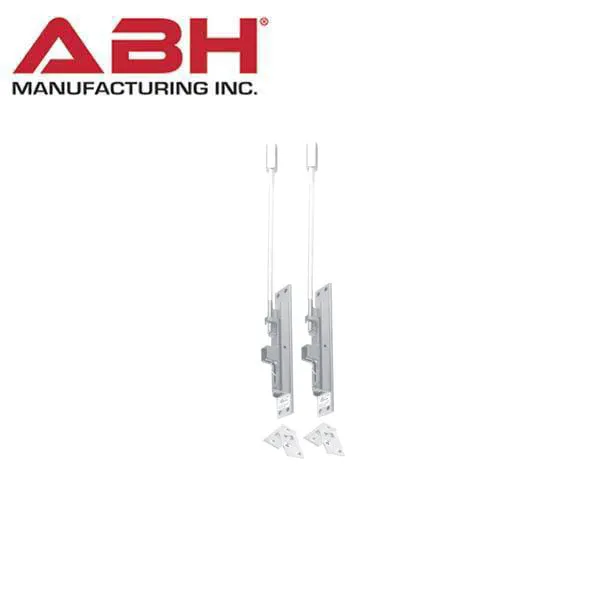

ABH-1855P

Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.

Material:

• Flush Bolt - Brass



Features:

• For Fire Rated Hollow Metal Swinging Doors measuring up to 4'w x 9'h rated up to and including 3 Hours
• Fits ANSI A115 door and frame preparation
• 3/4" bolt throw, 3/4" rod backset
• 12" rod length (center of face to bolt end - retracted)
• 1-1/2" adjustable bolt head
• When door is subjected to 230˚F the plug and black plastic cover will melt allowing the bolt to project, locking the leaves together
• Bottom fire bolt eliminates need for floor prep
• Oversize fire bolt strike hole allows for slight door misalignment
