CEA-608/CEA-708/ARIB B37 full featured solution providing all HDCC-708Multi features plus a dual channel ARIB B37 VANC Closed Captions encoder and decoder.

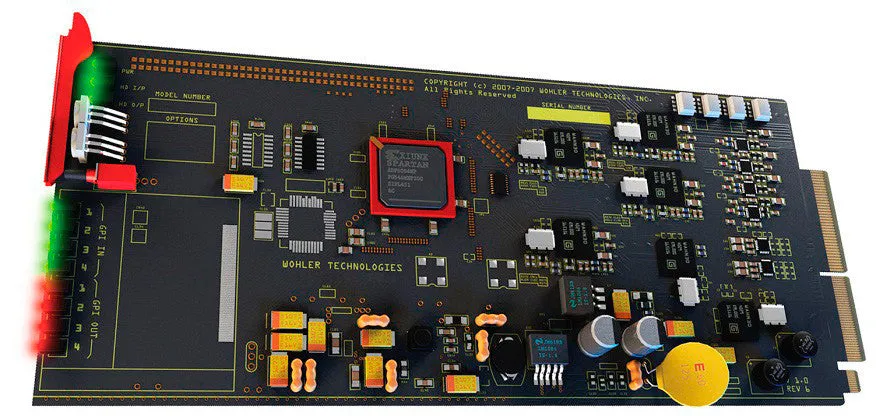

The MultiB37 model is a full featured dual channel solution that supports both CEA-608 (SD) and ARIB B37 (HD) captioning formats on a single card with functionality that supports even the most challenging captioning applications.

Features:

• Encode
• Bridge
• Transcode
• Decode
• Monitor
• GPI Encode/Decode

Specifications:

• Rack Height: 1RU
• Weight: 1.0 LB (0.5 KG)
• Dimensions: 4.0" X 8.7" X 0.5" (102X221X127 MM)
• Power Consumption: APPROXIMATELY 10W
• Signals Monitored: HD/SD-SDI;SD-SDI
• SDI Inputs: 2 HD/SD-SDI INPUTS ON BNC
• SDI Outputs: 2 RELAY-BYPASSED HD/SD-SDI OUTPUTS ON BNC; 2 HD/SD-SDI MONITORING OUTPUTS ON BNC
• # of Displays: 0
• Other Features (1): SUPPORTS SD AND HD IN ONE CARD; COMPLIANT WITH ALL BROADCAST SD/HD VIDEO STANDARDS; SUPPORTS SYNCHRONOUS GPI BROADCAST.
• Other Features (2): BRIDGES AND TRANSCODES SD VBI CEA-608-ENCODED CAPTIONS TO/FROM HD VANC CEA-708 ONES.
• Other Features (3): LIVE CAPTIONING SERIAL/ETHERNET INPUT SUPPORTING GRANDALLIANCE, SMPTE333 AND CDP PROTOCOLS. SYNCHRONOUS SERIAL/ETHERNET OUTPUT OF RAW CAPTION DATA.
• Supplied Accessories: OPTIONAL ADAPTERS AVAILABLE FOR EVERTZ, CODAN & IRT FRAMES
