Product Details
＋

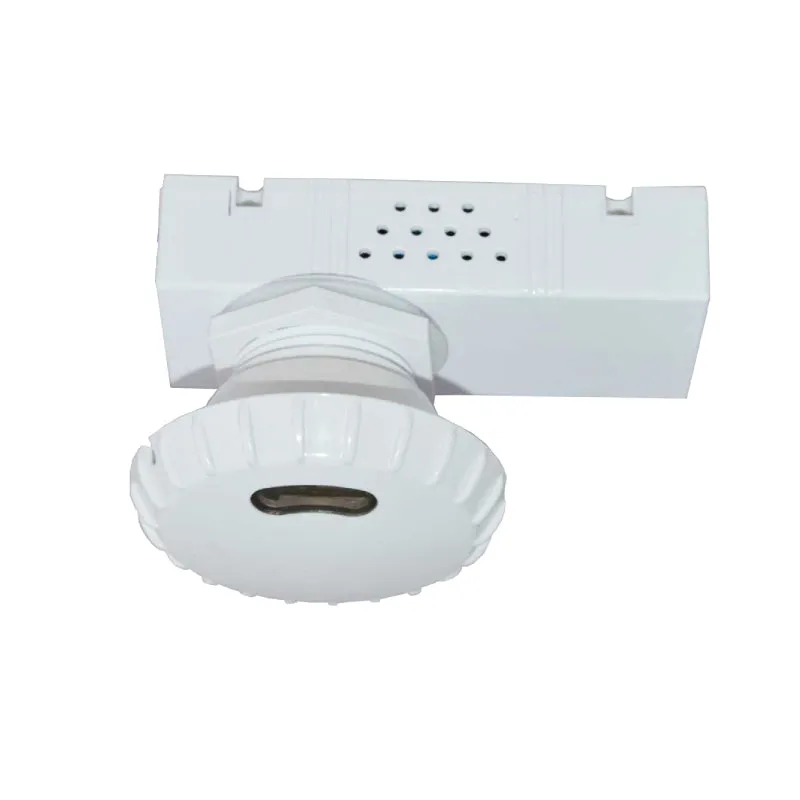

The WEC-3MDR-42 is a motion sensor that dims lighting from high to low based on movement.
Features
- Power supply: 120/277VAC 50/60Hz
- HF System: 5.8GHz CW
- Dim control output: 0-10V, max. 25mA sinking current
- Time setting: 10sec.-15min. (adjustable)
- Light-control: 10-2000Lux (adjustable)

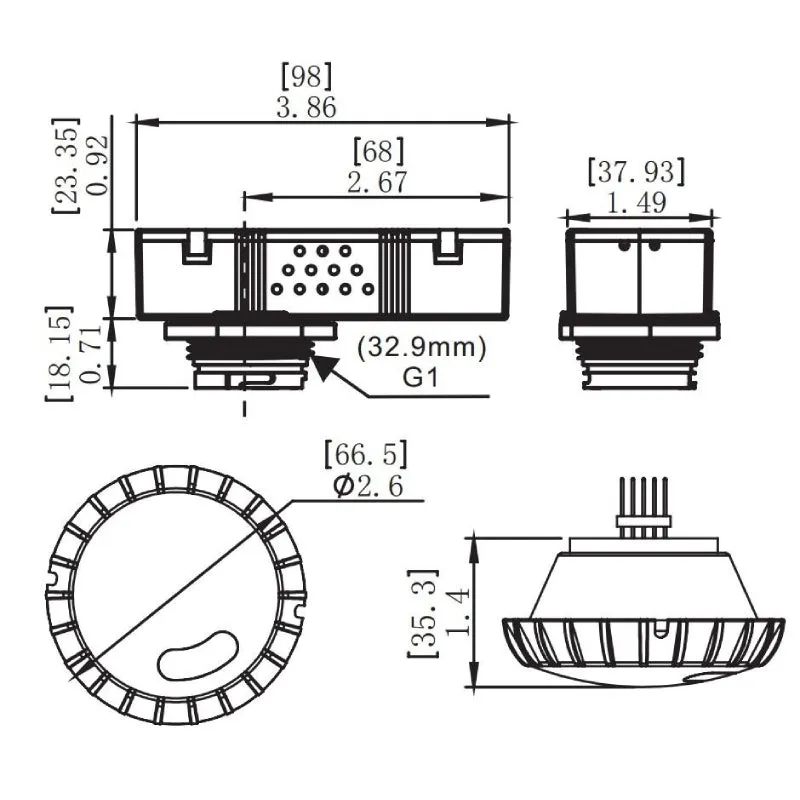

Dimensions
- Length: 3.86"
- Width: 1.49"
- Height: 1.63"
