Product Details
＋
Key Features of the IS 2360 DE ECO Sensor
- Perfect All-Rounder Sensor: Reliable motion detection for various indoor and outdoor spaces.
- Ideal for Home Use: Great for installations across the house, including projecting roofs and suspended ceilings.
- 360° Full Coverage: Offers a wide detection angle to catch motion in every corner.
- Adjustable Detection Range: Customise the range up to 8 metres in diameter to suit specific needs.
- Customisable Detection Zone: Tailor the coverage area with shrouds for added precision.
- Smart Settings: Features adjustable time and twilight thresholds for optimal performance.
----------
Stylish and Reliable Motion Detection

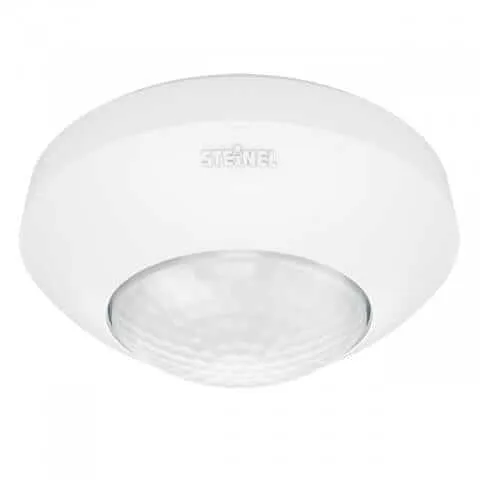

The IS 2360 Infrared Ceiling Sensor is designed to blend seamlessly into your space while delivering superior motion detection. With its sleek and compact design, this surface-mounted sensor is perfect for porches, small rooms, and other compact areas.
- Unobtrusive Design: Modern and stylish, the compact sensor easily blends into ceilings for a discreet look.
- 360° Coverage: Provides a full detection zone for comprehensive motion sensing.
- 8 m Detection Range: Reliable and precise motion detection for small to medium-sized spaces.
- Passive Infrared Technology: Ensures accurate and efficient detection for enhanced lighting control.
- Effortless Installation: Designed for quick and easy setup to save you time.
The IS 2360 Infrared Ceiling Sensor is the ideal choice for anyone seeking reliable, stylish, and efficient motion detection for smaller spaces.
---------| General | |
|---|---|
| Dimensions (Ø x H) | 78 x 89 mm |
| With motion detector | Yes |
| Manufacturer's Warranty | 5 years |
| Settings via | Potentiometers |
| With remote control | No |
| Version | White |
| PU1, EAN | 4007841034733 |
| Type | Motion detectors |
| Application, place | Outdoors, Indoors |
| Application, room | Corridor / aisle, changing room, function room / ancillary room, kitchenette, stairwell, WC / washroom, outdoors, front door, all round the building, terrace / balcony, Indoors |
| Colour | White |
| Colour, RAL | 9010 |
| Fixation/mounting | |
| Includes corner wall mount | No |
| Installation site | Ceiling |
| Installation | In-ceiling installation, Ceiling |
| Housing | |
| IP-rating | IP54 |
| Protection class | II |
| Ambient temperature | -20 – 40 °C |
| Material | Plastic |
| Electrical equipment | |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Switching output 1, number of LEDs / fluorescent lamps | 6 stk. |
| Fluorescent lamps, electronic ballast | 430 W |
| Fluorescent lamps, uncorrected | 500 VA |
| Fluorescent lamps, series-corrected | 406 VA |
| Fluorescent lamps, parallel-corrected | 406 VA |
| Switching output 1, low-voltage halogen lamps | 1000 VA |
| LED lamps < 2 W | 16 W |
| LED lamps > 2 W < 8 W | 64 W |
| LED lamps > 8 W | 64 W |
| Capacitive load in μF | 132 µF |
| General information | |
| Article number | 034733 |
| European Article Number (EAN) | 4007841034733 |
| Detection angle | 360 ° |
| Angle of aperture | 180 ° |
| Sensor technology | |
| Technology, sensors | Passive infrared, Light sensor |
| Mounting height | 2.2 – 4 m |
| Mounting height max. | 4.00 m |
| Optimum mounting height | 2.5 m |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |
| Reach, radial | Ø 4 m (13 m²) |
| Reach, tangential | Ø 8 m (50 m²) |
| Cover material | Shrouds |
| Functions | |
| Twilight setting | 2 – 2000 lx |
| Time setting | 8 s – 35 Min. |
| Basic light level function | No |
| Main light adjustable | No |
| Twilight setting TEACH | No |
| Constant-lighting control | No |
| Connection | |
| Interconnection | Yes |
| Type of interconnection | Master/master |
| Interconnection via | Cable |
----------
