Product Details
＋
Key Features of the Steinel IS 180 Digi HD Motion Sensor
- Advanced Infrared Technology: Digitally adjustable 180° detection angle with a detection range of up to 8 m for precise motion sensing.
- Smart Control: Adjust settings effortlessly via Bluetooth using the STEINEL Connect App on your smartphone or tablet.
- Customisable Detection Zones: Divided into three zones, each can be digitally activated, deactivated, or adjusted for tailored motion detection.
- Versatile Mounting Options: Ideal for wall mounting both indoors and outdoors, with an IP54-rated housing for protection against various weather conditions.
- Flexible Light Control: Stepless adjustments for time settings (5 sec. – 60 min.) and switch-on brightness levels (2–1000 lux), plus an optional continuous light mode.
- High Switching Capacity: Reliably operates any light source with a total switching load of up to 1000 W, supporting up to 6 LED connections.
- Eco-Friendly Packaging: Includes all necessary mounting accessories in 100% plastic-free packaging.
----------
Modern Design Meets Cutting-Edge Technology
The Steinel IS 180 Digi HD Motion Sensor combines sleek aesthetics with advanced sensor technology to deliver unmatched performance. Featuring a flat, modern design with discreet lens integration, it blends seamlessly into any setting, making it the ideal choice for contemporary indoor and outdoor spaces.
- Elegant and Inconspicuous Design: A flat, straight-lined design with integrated lens optics for a sophisticated and unobtrusive appearance.

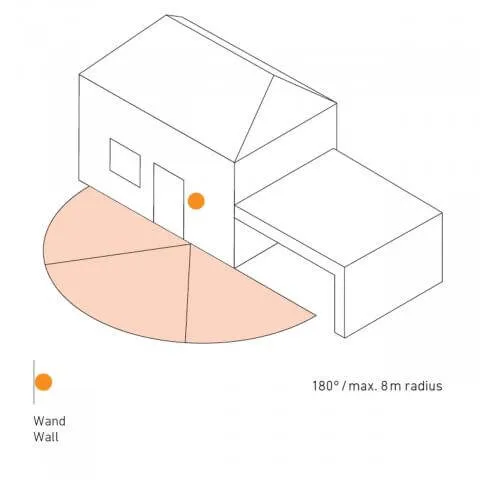

- Advanced Infrared Sensor Technology: Revolutionary 180° detection that precisely detects both radial and tangential movements within an 8 m radius.
- Customisable Detection Zones: Easily adjust sensitivity and activate or deactivate each of the three zones digitally for tailored coverage.
- Enhanced Detection Quality: Innovative mirror technology ensures consistent and reliable motion detection regardless of movement direction.
- Smart Connectivity: Effortlessly set, operate, and network sensors and lights via Bluetooth using the STEINEL Connect App.
- Efficient and Reliable: Provides precise motion detection with easy installation and configuration, saving you time and effort.
With its innovative infrared technology and elegant design, the IS 180 Digi HD redefines motion detection, making it the ultimate choice for modern homes and commercial spaces.
---------
| General | |
|---|---|

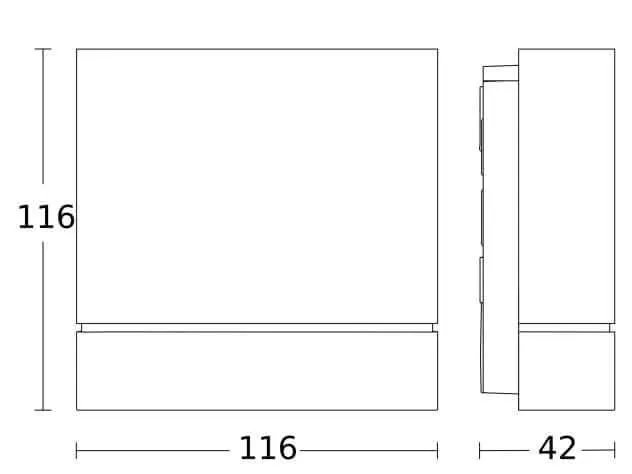

| Dimensions (L x W x H) | 42 x 116 x 116 mm |
| With motion detector | Yes |
| Manufacturer's Warranty | 3 years |
| Settings via | Bluetooth, Smartphone, Tablet |
| With remote control | No |
| Version | White |
| PU1, EAN | 4007841067281 |
| Type | Motion detectors |
| Application, place | Outdoors |
| Application, room | Outdoors, garden, front door, courtyard & driveway, all around the building, terrace/balcony, corridor/aisle, Indoors |
| Colour | White |
| Colour, RAL | 9003 |
| Fixation/mounting | |
| Includes corner wall mount | No |
| Installation site | Wall |
| Installation | Surface wiring, Wall |
| Housing | |
| IP-rating | IP54 |
| Ambient temperature | -20 – 40 °C |
| Electrical equipment | |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Switching output 1, resistive | 1000 W |
| Fluorescent lamps, electronic ballast | 430 W |
| Fluorescent lamps, uncorrected | 500 VA |
| Fluorescent lamps, series-corrected | 400 VA |
| Fluorescent lamps, parallel-corrected | 400 VA |
| Switching output 1, low-voltage halogen lamps | 1000 VA |
| LED lamps < 2 W | 16 W |
| LED lamps > 2 W < 8 W | 64 W |
| LED lamps > 8 W | 64 W |
| Capacitive load in μF | 88 µF |
| Power consumption | 0.6 W |
| General information | |
| Article number | 067281 |
| European Article Number (EAN) | 4007841067281 |
| Detection angle | 180 ° |
| Angle of aperture | 90 ° |
| Sensor technology | |
| Technology, sensors | Light sensor, passive infrared |
| Mounting height | 1.80 – 2.5 m |
| Mounting height max. | 2.50 m |
| Optimum mounting height | 2 m |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | Yes |
| Mechanical scalability | No |
| Reach, radial | r = 6 m (57 m²) |
| Reach, tangential | r = 8 m (101 m²) |
| Functions | |
| Functions | Motion sensor, Adjustable fade time when switching on and off, Capture zone definition, Feedback indicator, Night economy mode, Normal/test mode, Neighbouring group function, Relay output, Light sensor |
| Twilight setting | 2 – 1000 lx |
| Time setting | 5 s – 60 Min. |
| Basic light level function | No |
| Main light adjustable | No |
| Twilight setting TEACH | Yes |
| Constant-lighting control | No |
| Connection | |
| Interconnection via | Bluetooth Mesh Connect |
----------
