Product Details
＋
- Innovative Sensor Technology: Advanced detection capabilities for reliable outdoor motion sensing.
- Precise Motion Detection: 160° iHF sensor with a 5 m reach, equipped with 3D aerial technology to distinguish between objects.
- Customise Settings via Bluetooth: Easily adjust and interconnect using the app for seamless control.
- Ideal for Outdoor Applications: Perfect for facades, carports, parking areas, and patios.

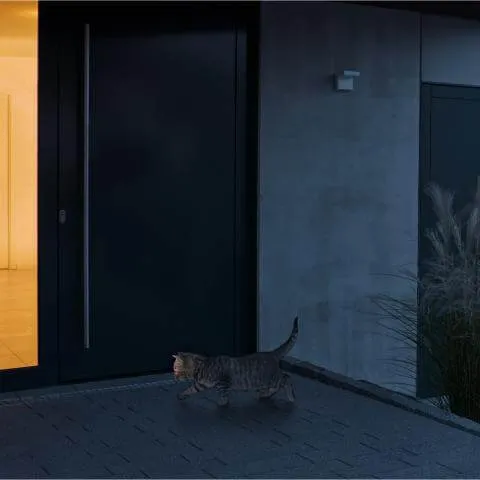

- No False Triggers: Effectively avoids triggering by small animals or extreme temperatures.

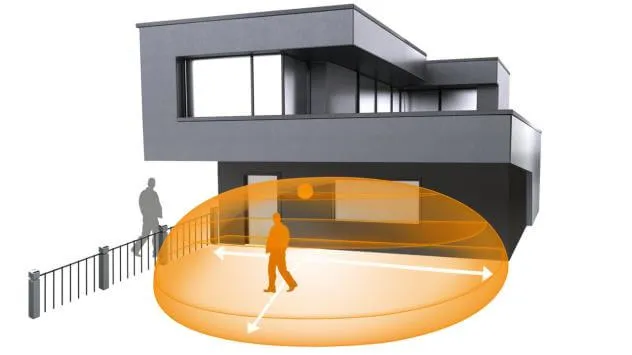

- Consistent Detection: Detects motion equally well from all directions.
The iHF 3D motion detector makes all the difference outdoors, offering precision and adaptability exactly where you need it.
----------
Precision and Intelligence for Outdoor Motion Detection
The iHF 3D Motion Detector is the ultimate outdoor solution, delivering reliable and smart performance wherever you need it most. Perfect for facades, carports, patios, and car parks, this innovative sensor ensures your lights activate only when truly needed.
- No False Alarms: Distinguishes between human movement and environmental triggers like bushes, small animals, or rain.
- Customisable Detection: Adjust the 160° detection angle and 5-metre range with precision to suit your needs.

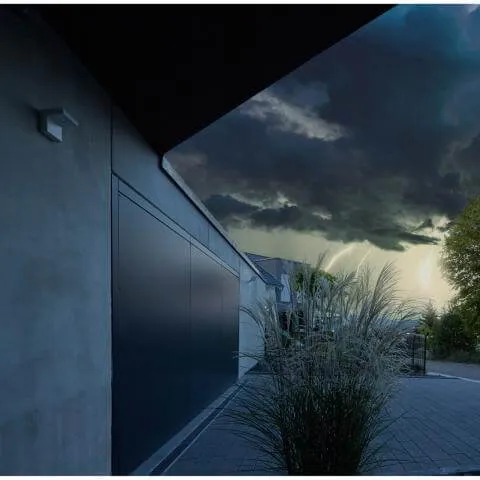

- Weatherproof Performance: Reliable in any weather conditions, ensuring consistent operation year-round.
- Bluetooth Connectivity: Wirelessly adjust settings, interconnect devices, and control functions using the STEINEL app.
- Seamless Integration: Ideal for enhancing outdoor spaces with intelligent lighting solutions.
With its state-of-the-art 3D aerial technology, the iHF 3D Motion Detector redefines convenience and precision, giving you full control over your outdoor lighting system.
----------
| Category | Specification |
|---|---|
| General | |
| Dimensions (L x W x H) | 120 x 117 x 120 mm |
| With motion detector | Yes |
| Manufacturer's Warranty | 5 years |
| Settings via | Potentiometers, Bluetooth |
| With remote control | No |
| Version | COM1 - white |
| PU1, EAN | 4007841066222 |
| Type | Motion detectors |
| Application, place | Outdoors |
| Application, room | Outdoors, front door, all around the building, terrace / balcony, courtyard & driveway |
| Colour | White |
| Colour, RAL | 9010 |
| Fixation / Mounting | |
| Includes corner wall mount | No |
| Installation site | Wall |
| Installation | Surface wiring, Wall |
| Housing | |
| IP-rating | IP54 |
| Ambient temperature | -20 – 50 °C |
| Material | Plastic |
| Electrical Equipment | |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Switching output 1, resistive | 2000 W |
| General Information | |
| Article number | 066222 |
| European Article Number (EAN) | 4007841066222 |
| Detection angle | 160 ° |
| Angle of aperture | 100 ° |
| Transmitter power | < 1 mW |
| Sensor Technology | |
| Technology, sensors | iHF (intelligent high-frequency technology), Light sensor |
| Mounting height | 1.80 – 2.00 m |
| Mounting height max. | 2.00 m |
| Optimum mounting height | 1.8 m |
| HF-system | 5.8 GHz |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | Yes |
| Mechanical scalability | No |
| Reach, radial | r = 5 m (35 m²) |
| Reach, tangential | r = 5 m (35 m²) |
| Functions | |
| Functions | Normal / test mode, Manual ON / ON-OFF |
| Twilight setting | 2 – 2000 lx |
| Time setting | 5 s – 60 Min. |
| Basic light level function | No |
| Main light adjustable | No |
| Twilight setting TEACH | Yes |
| Constant-lighting control | No |
| Connection | |
| Interconnection | Yes |
| Type of interconnection | Master/master |
| Interconnection via | Cable, Bluetooth |
----------
