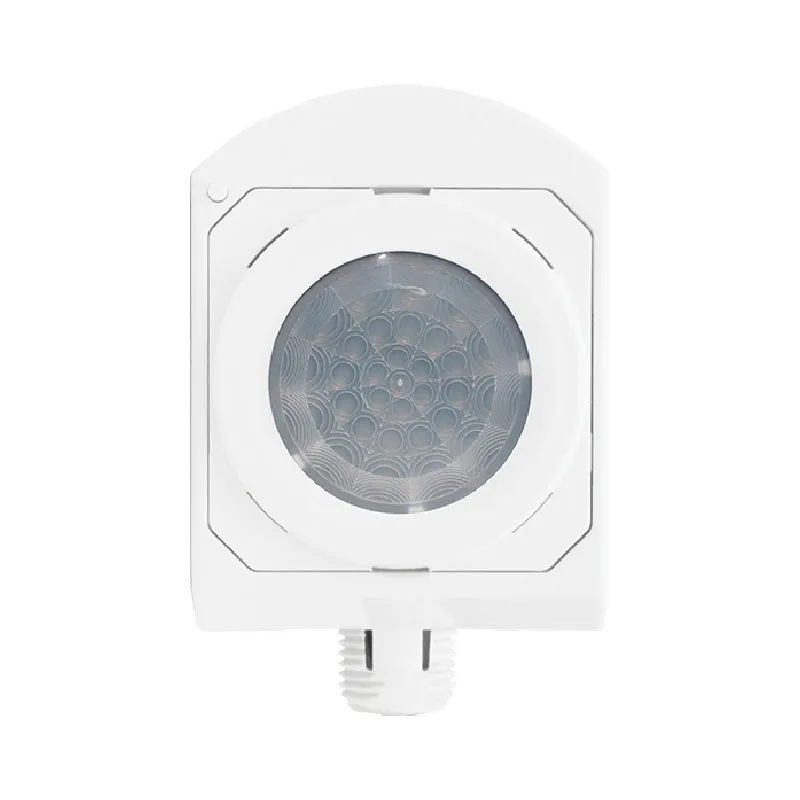

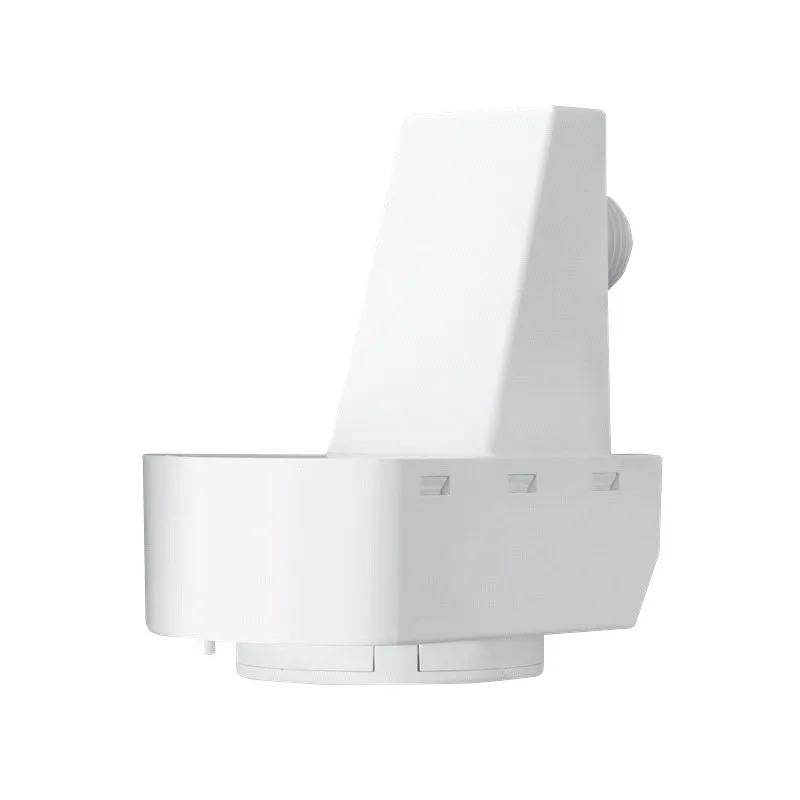

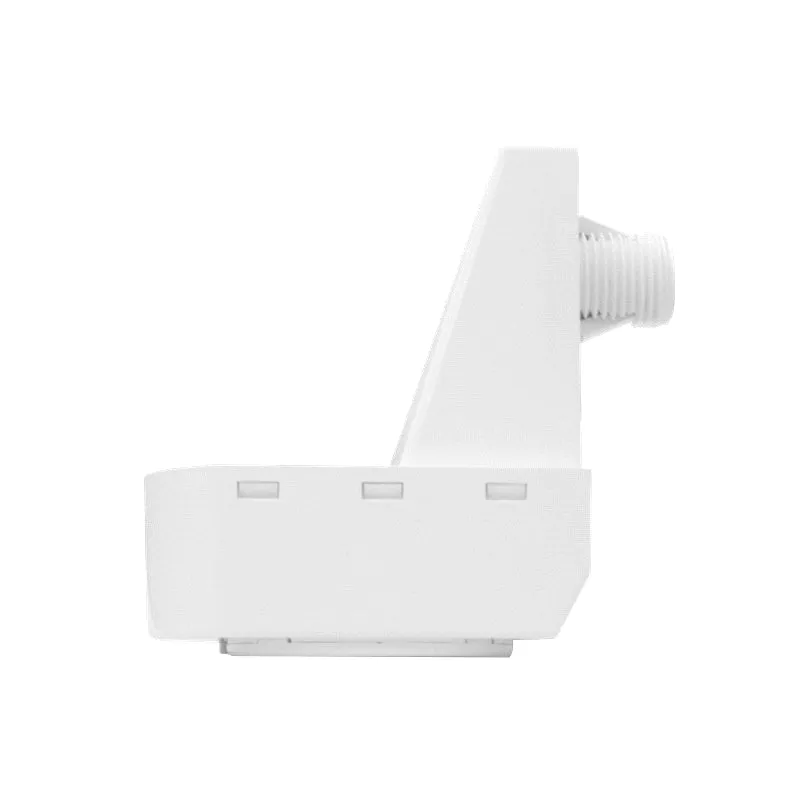

The LSXR Family of fixture mount occupancy sensors provides reliable and versatile solutions for commercial and industrial lighting control applications.

Features

• Color: White
• Mount: 1/2" Knockout (7/8" hole)
• Lens: High Mount 360º
• Voltage: 120-277 VAC
• Max Dim Level: 10 VDC
• Lead Length: 8"
• Default Time Delay: 10 min (w/ 15 min minimum on time)
• Integrated mounting bracket drops lens down 3” from chase nipple - no bracket accessory required
• 100% digital PIR detection - provides excellent RF immunity
• No PIR field calibration or sensitivity adjustments required
• Powers from single or two-phase line connections
• Reversible hot & load wires - eliminates backwards wiring
• Non-volatile settings memory
• Convenient test mode - quickens initial walk and/or photocell testing
• Green LED indicator
• Default 10 minute occupancy time delay

Dimensions

• Width: 3.75"

• Height: 2.5"
• Depth: 4"

Warranty

• 5-year limited warranty.
