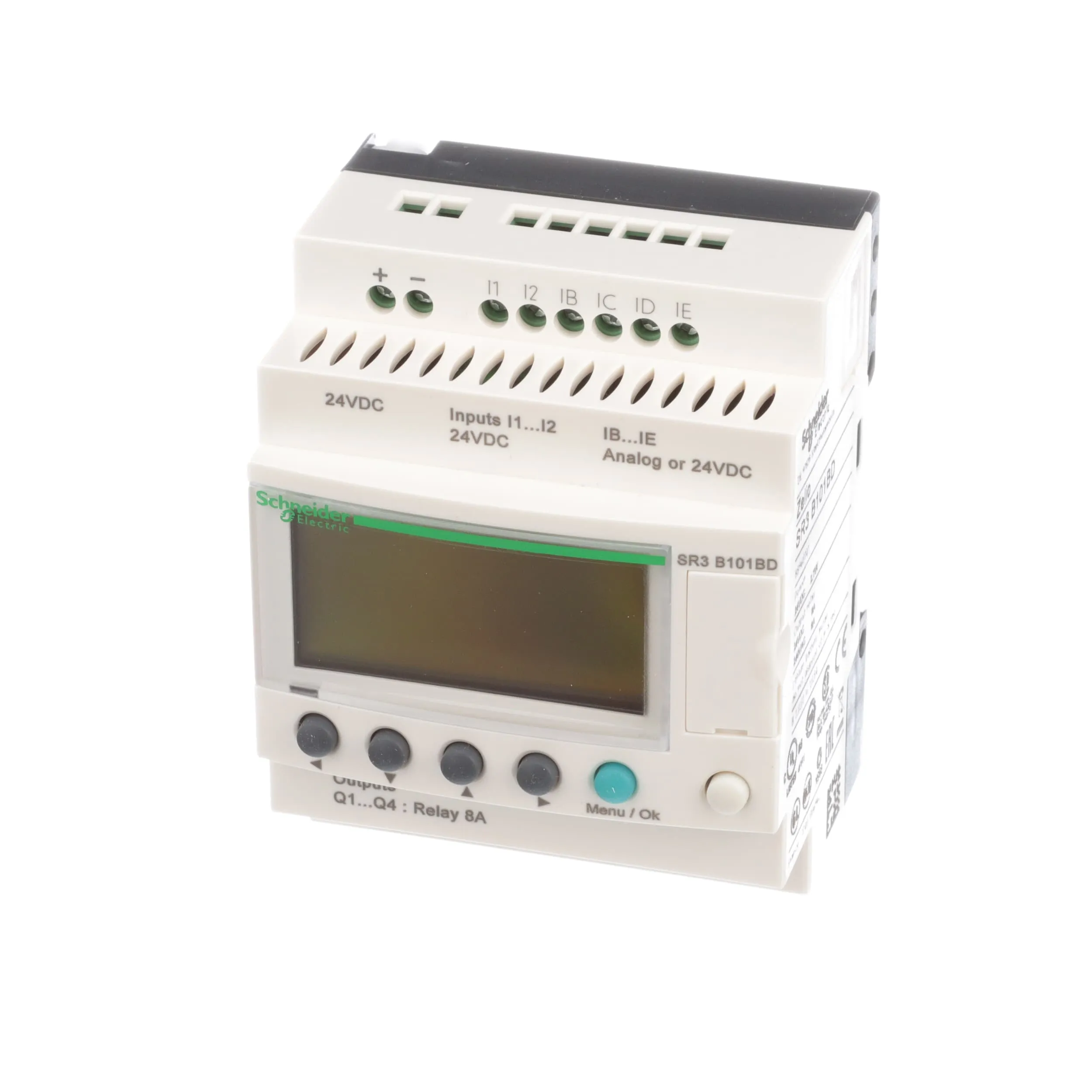

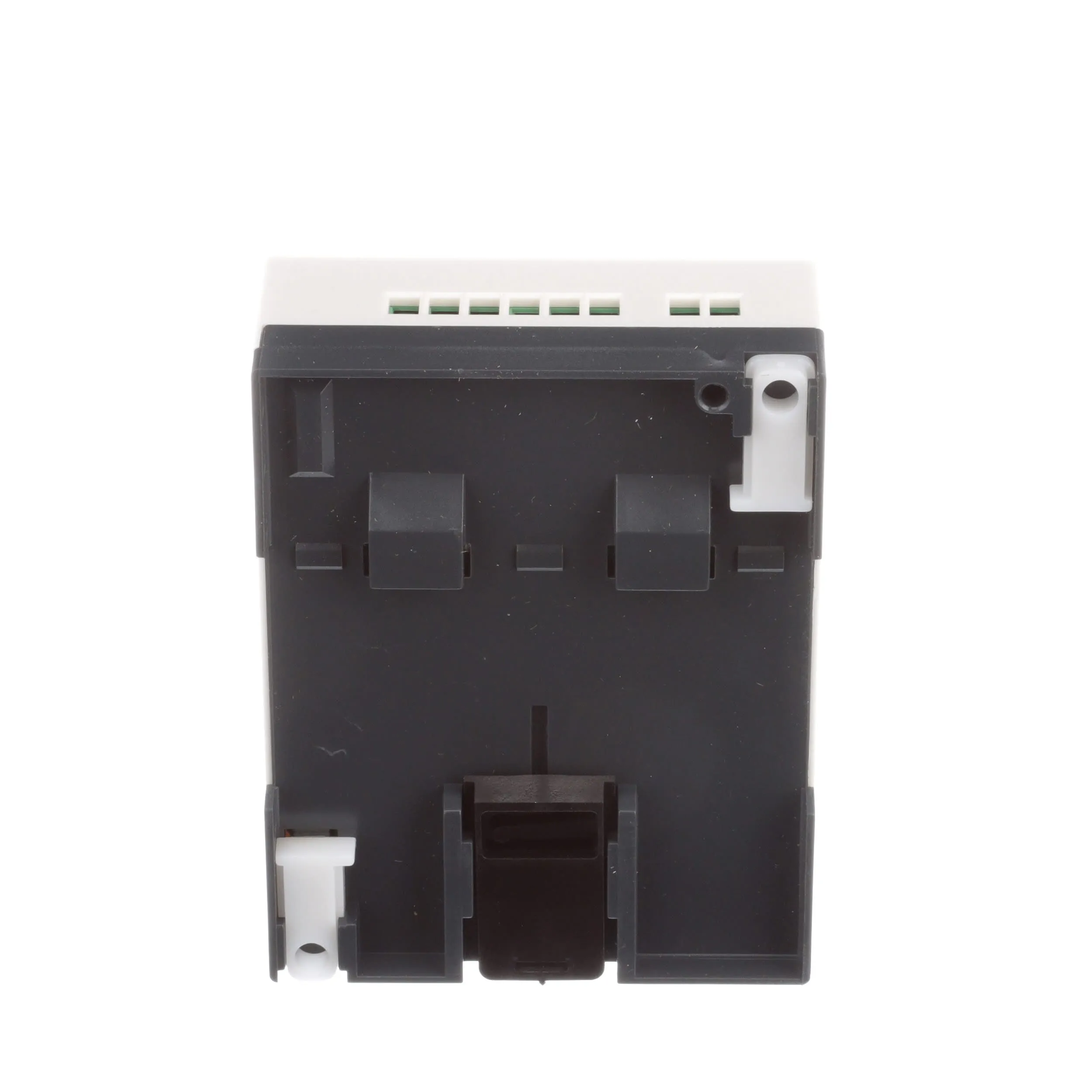

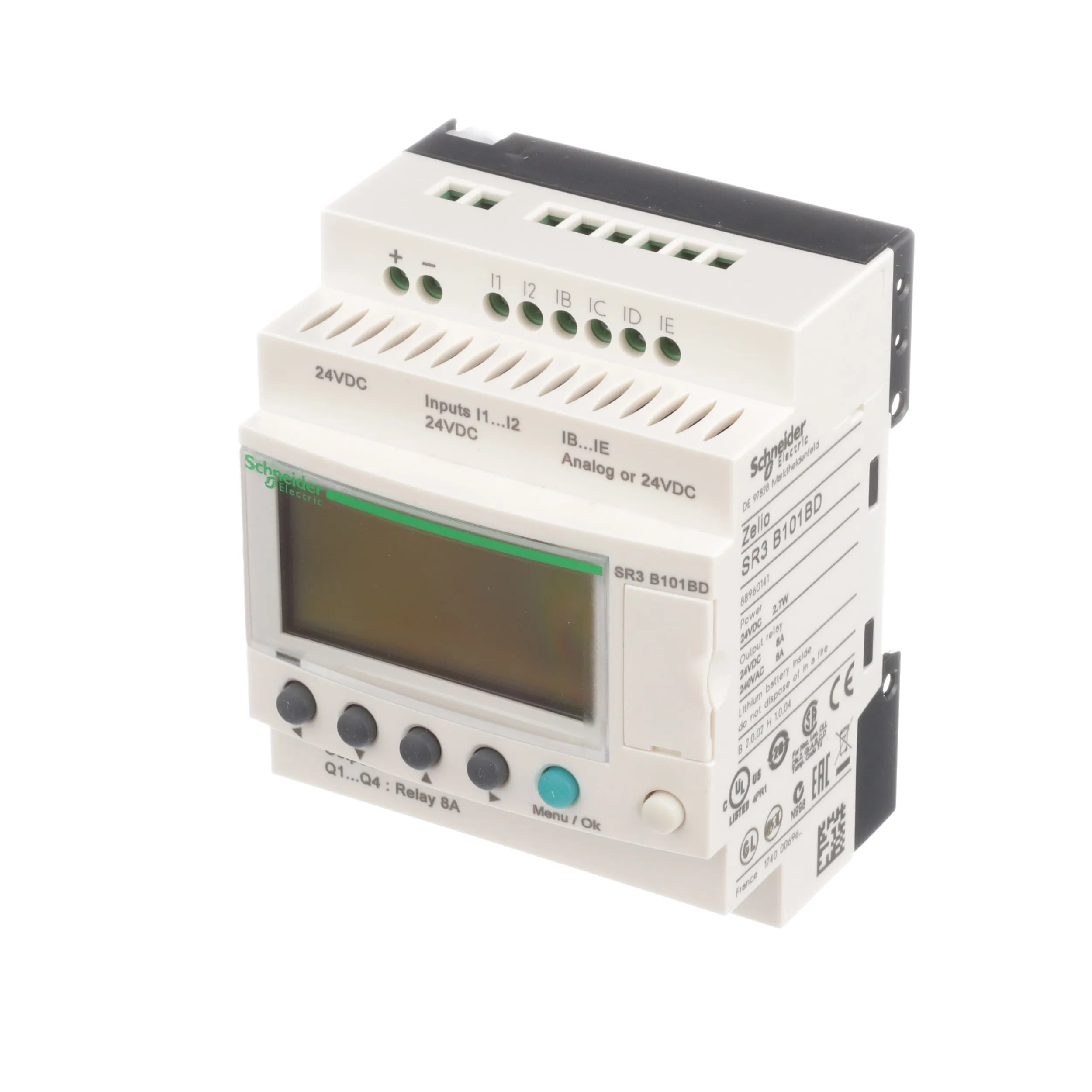

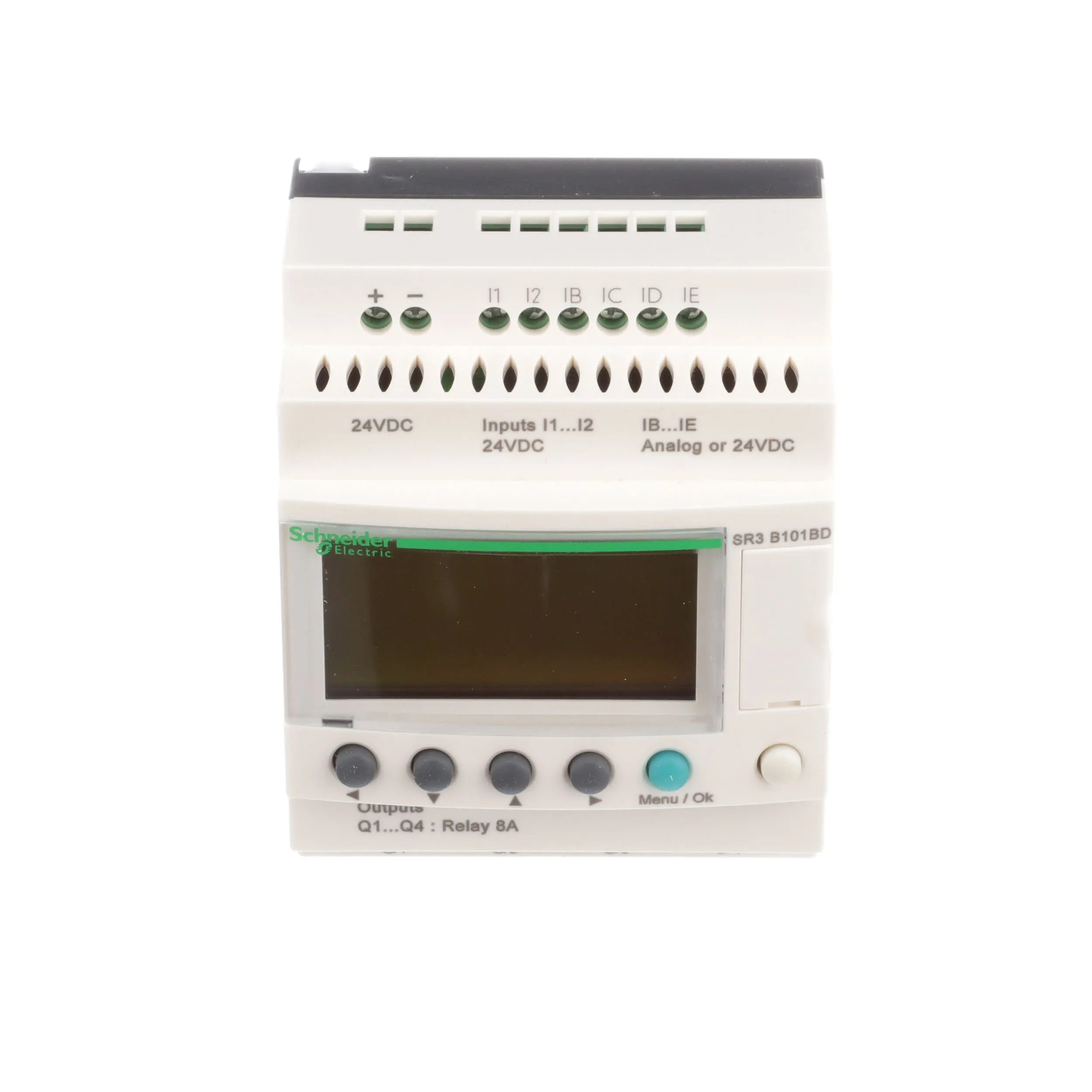

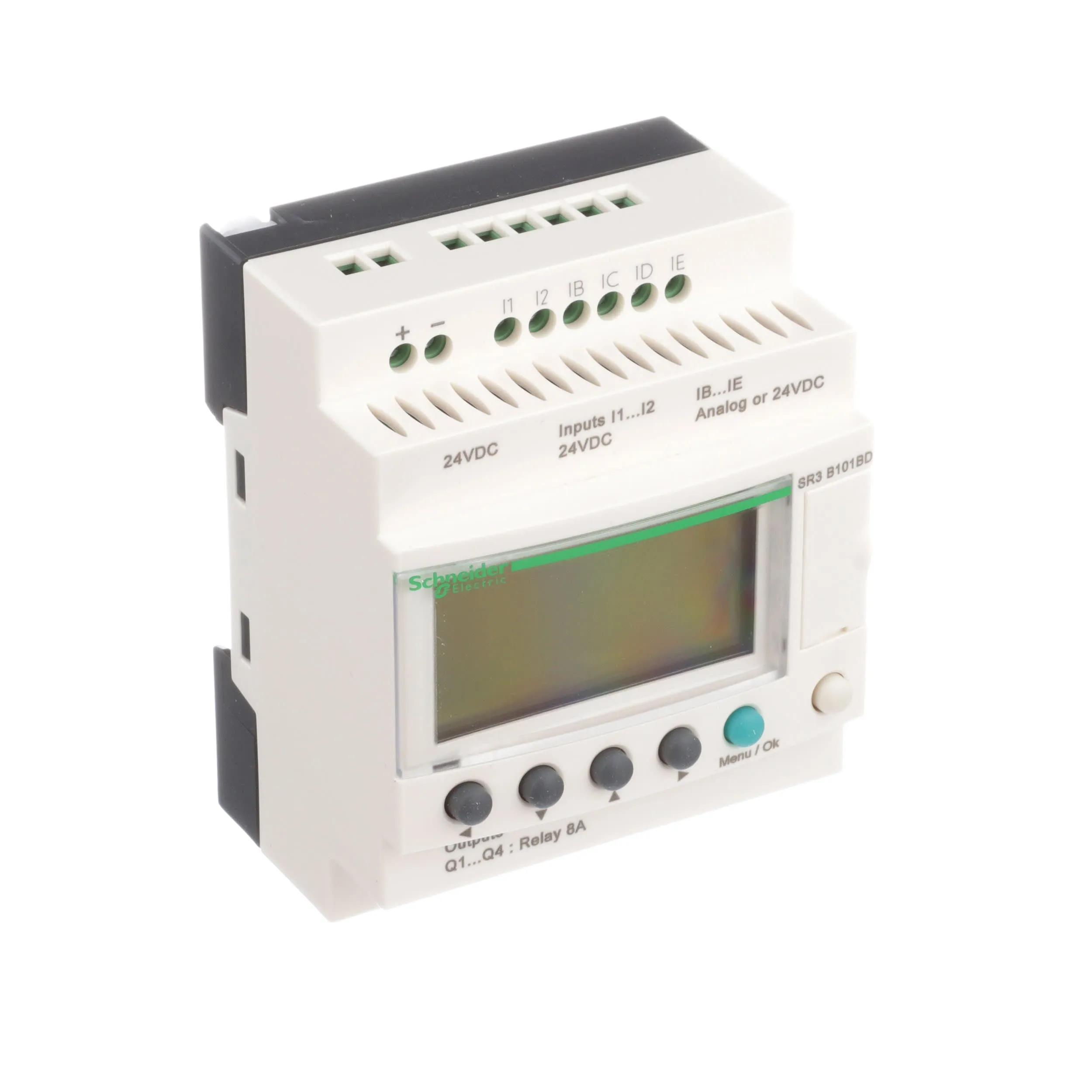

Name: Schneider Electric SR3B101BD
SKU: 1031599

Product Details ＋

Product Attribute	Attribute Value
Controller Type	I/O
Family Name	Zelio Logic Family
Mounting Type	DIN Rail
Number of Ports	10
Primary Type	Smart Relay
Series
Supply Voltage	24 VDC
Termination	Screw
Type	Programmable
UPC Code	785901693963

Overview

Schneider Electric Zelio Logic SR2/SR3 Series — Smart Relays | For Simple Automation Systems up to 40 I/O's:

Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards..

Features:

Modbus or Ethernet communication extension modules

6, 10 or 14 discrete I/O and 4 analog I/O extension modules

Extreme compactness: up to 26 I/O within 124.6 x 90 x 59 mm

Supply voltage of bases: 12 V DC, 24 V DC, 24 V AC, 100... 240 V AC

Large back-lit LCD display: 4 lines of 18 characters and 1 line of icons, contextual navigation using 6 buttons.

Serial or USB connecting cables for smart relay/PC connection

Connection interface (smart relay/PC) for Bluetooth wireless connection

Zelio Soft 2 intuitive programming software: programming using: function block diagram (FBD): 32 pre-programmed functions, 7 Grafcet functions, 6 logic functions contact language (LADDER): 12 pre-programmed functions

Applications:

Industry: control systems for small machines, decentralised control systems on equipment annexed to large and medium-sized machines

Building/Service sector: lighting management, access control, control and monitoring, heating and air conditioning control
