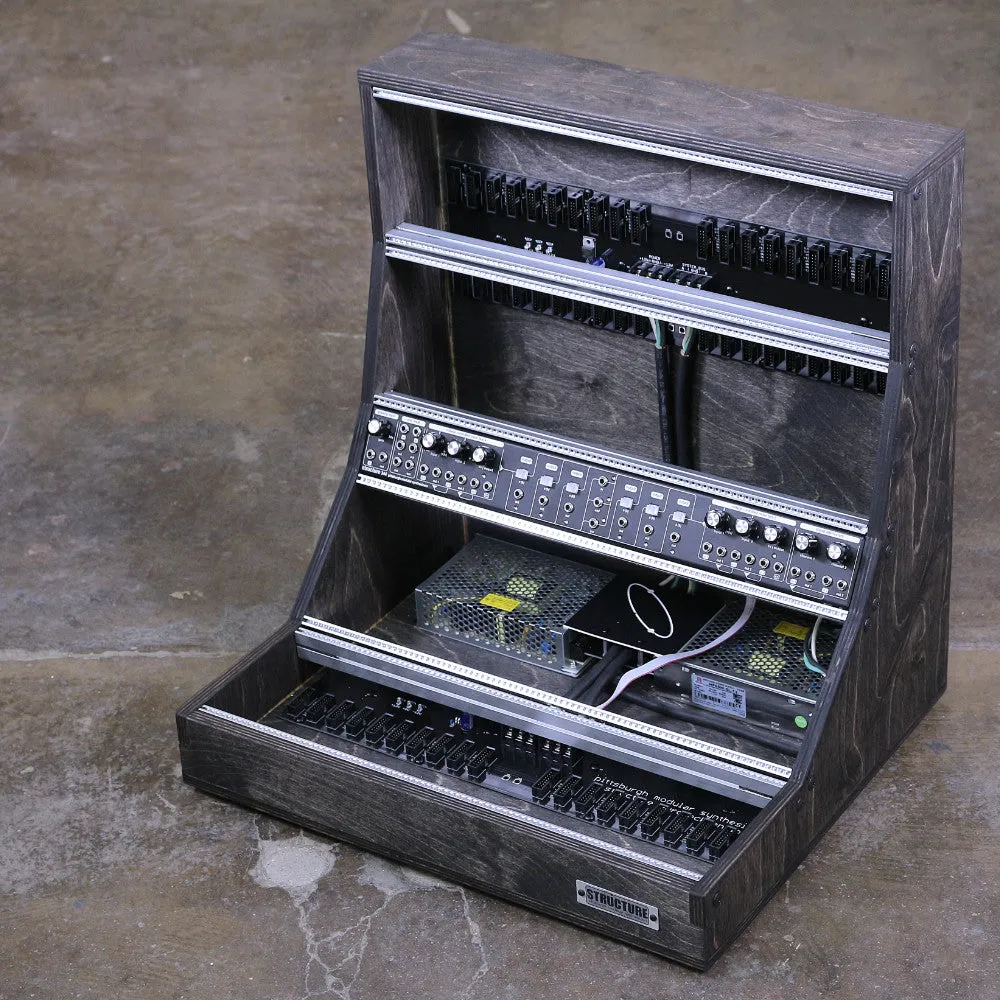

Eurorack studio command centre. An inspiring studio centrepiece, the Structure 344 merges a classic form with robust power and deep, integrated synthesis tools. The 4 row, 344 hp desktop eurorack case features a custom Utility Bridge to handle a wide assortment of functions incorporating a preamp, mixer/splitter, dual voltage controlled signal buses, buffered, cascading attenuators, and more.

Structure 344 Enclosure

• Four 86hp rows

• 344hp total space available

• Multi-functional integrated audio and CV utility hub

• Edge to edge, through-wall-mounted rails reduce gaps between modules and the side of the case

• Full row nut strips

• Includes 160 black (size M3 6mm) module mounting screws

• Beautifully hand-stained hardwood

Structure 344 Utility Bridge

• Soft clipping overdriveable pre-amp

• Fully buffered 2 In - 4 out unity gain mixer/splitter

• Dual voltage controlled bus system with each bus incorporating a 3 channel mixer with offset, inversion, breakout channels and more.

• 6 assignable bus outputs.

• Bus mixers featuring and (mix) output, analog or output, and inverted mix output

• Dual Fully Buffered Cascading Attenuators

Structure 344 Power

• Up to 5 amps of clean, filtered 12v power

• 5 amps of clean, filtered -12v power

• Up to 3 amps of clean, filtered 5v power (see manual for detailed power breakdown)

• 79 keyed 16 pin power headers

• Rear mounted power switch with LED

Structure 344 Dimensions

• External Depth at Top: 4”

• External Depth at Base: 15.5”

• External Height: 19”

• External Width: 18”

• Maximum Internal Depth for Modules: 4”

• Empty Weight: 19.5 lbs

Brand new with warranty.

Product Specs

• Item Number: 18886
• Make:
• Model:
• Condition:
• Finish: Black Stain
• Categories: ⇒
• Made In: United States
• MPN: PMS3015
