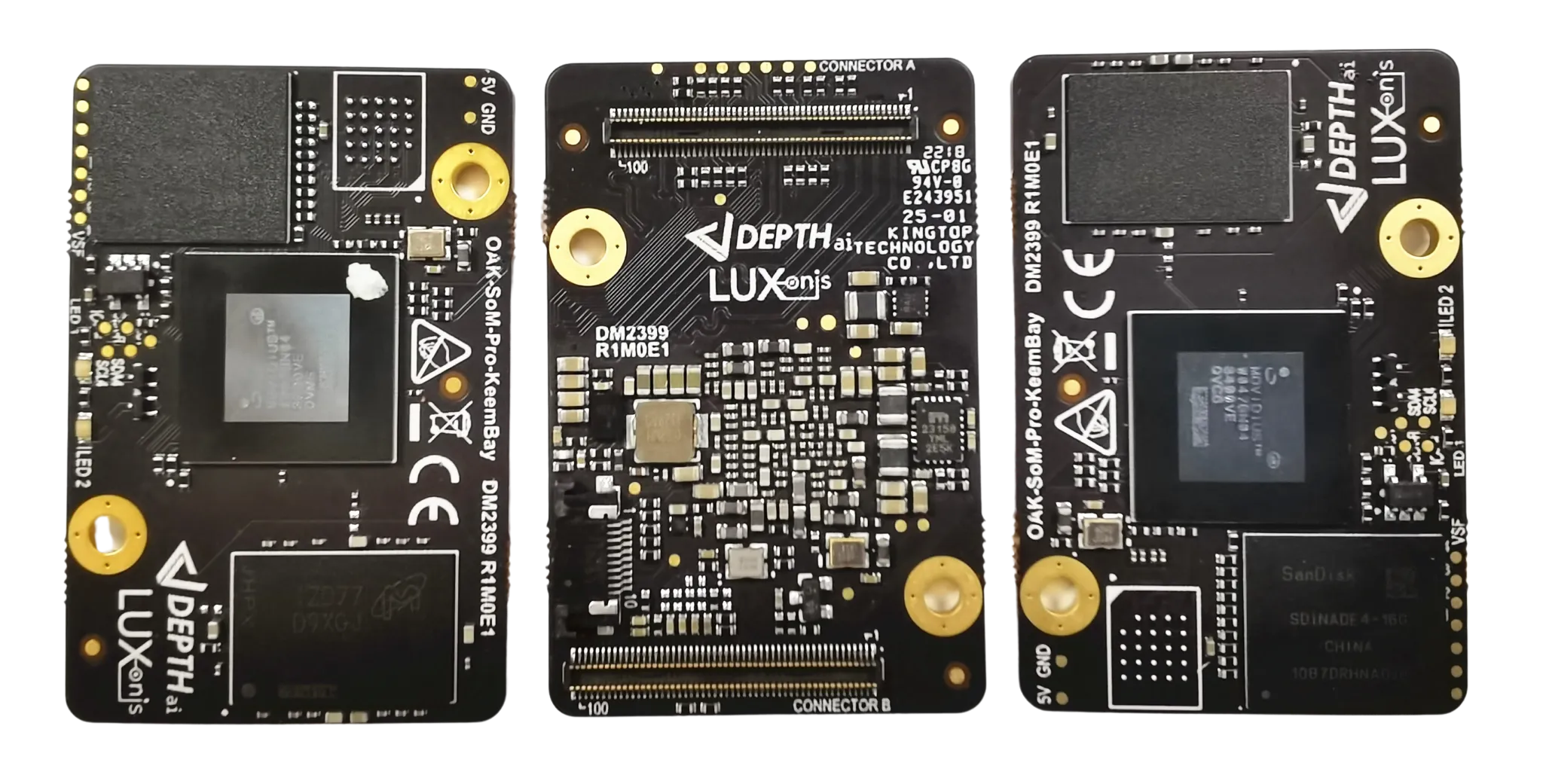

OAK-SoM Pro S3 is community-supported only and is provided as-is. This means we won’t update it and don’t provide support for it.
The OAK-SoM Pro S3 features the and a quad-core ARM CPU. It is ideal for use in industrial automation, robotics, and security systems.
The OAK-SoM Pro S3 was primarily designed for evaluation and backward compatibility. For new products, we suggest using the .
OAK System on Module (SoM) allows integration into top-level systems with a need for a low-power, high-performance, real-time AI and depth perception.
Specifications:
- Interfaces with the system through two 10-gbps-rated 100-pin connectors (DF40C-100DP-0.4V(51))
- Connectors: 2x 100-pin mezzanine connector with the same pinout as OAK-Som Pro
- MIPI lines: 2x 4-lane and 2x 2-lane MIPI RX lines
- RAM: 1x DDR RAM due to size/shape constraints
- Boot Modes Supported: NOR, eMMC, USB, Ethernet (EEPROM)
- Supporting SD-card
- USB 3.1 Gen 2
The OAK-SoM Pro S3 features the and a quad-core ARM CPU. It is designed to have the same dimensions and pinout as the OAK-SoM Pro, so it can easily be swapped into OAK cameras. It is ideal for use in industrial automation, robotics, and security systems.
The OAK-SoM Pro S3 was primarily designed for evaluation and backward compatibility. For new products, we suggest using the .
Main features:
This OAK device is built on top of the .
- 3.0 TOPS for AI
- Imaging: ISP, max 6 cameras, 500 MP/s HDR, 3A
- Run any AI model, even custom architectured/built ones
- Encoding/Decoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
- Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking
- Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
-
Object tracking: 2D and 3D tracking
- Dimensions: 30x45x4 mm
- Weight: 5g
Package includes
- OAK-SoM Pro S3
-
Heatsink
- Screws
