OAK-SoM MAX is community-supported only and is provided as-is. This means we won’t update it and don’t provide support for it.

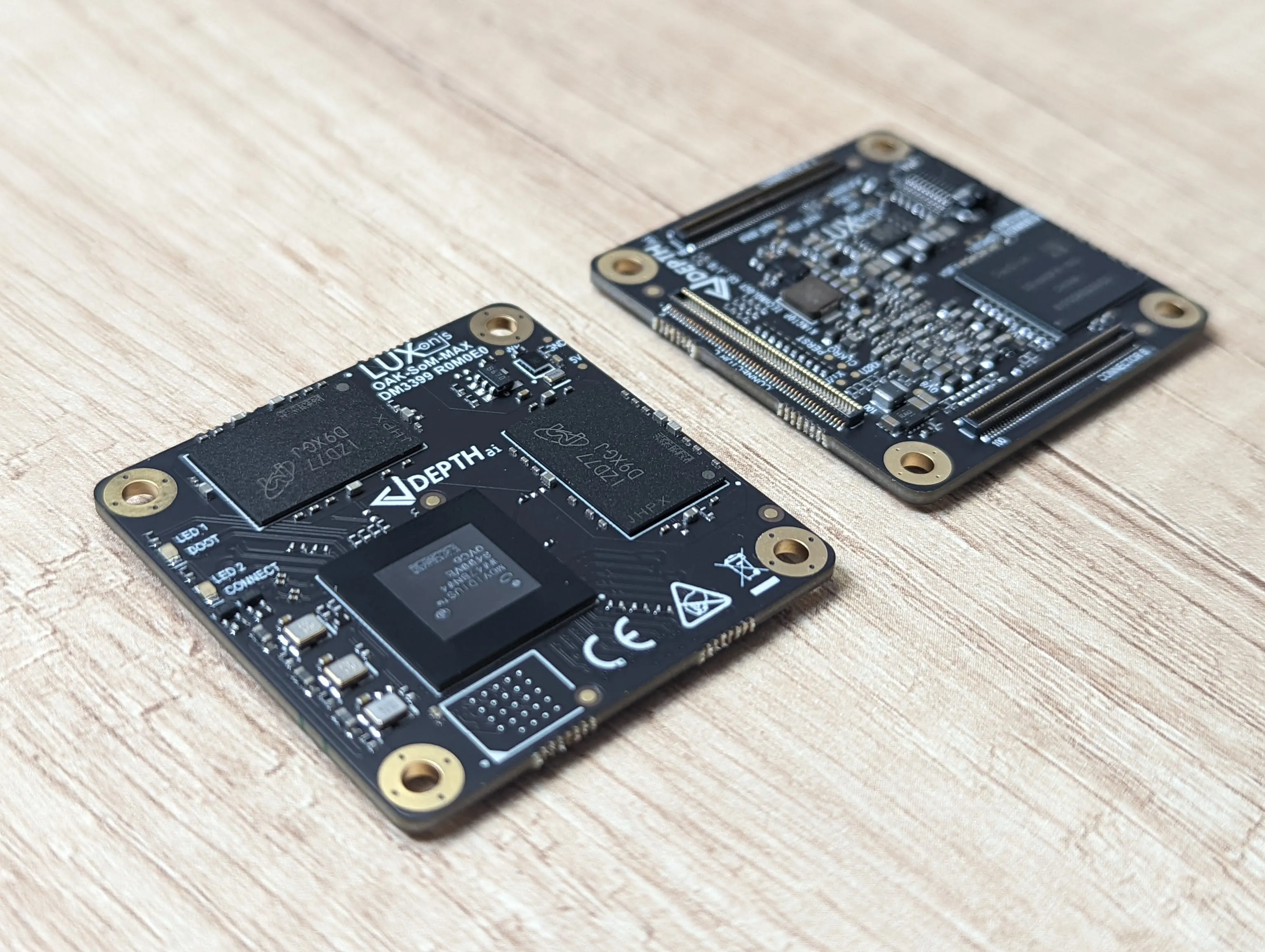

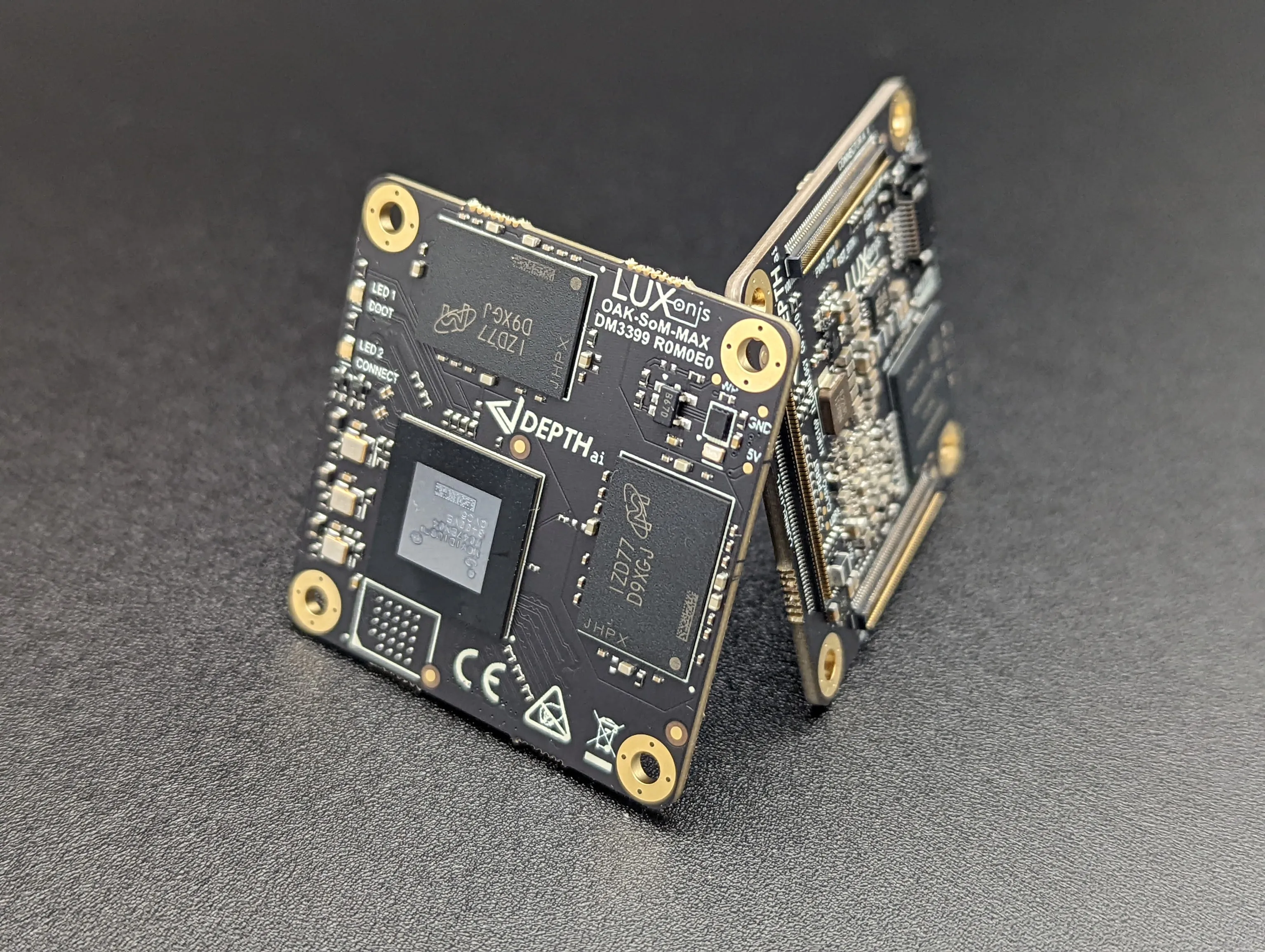

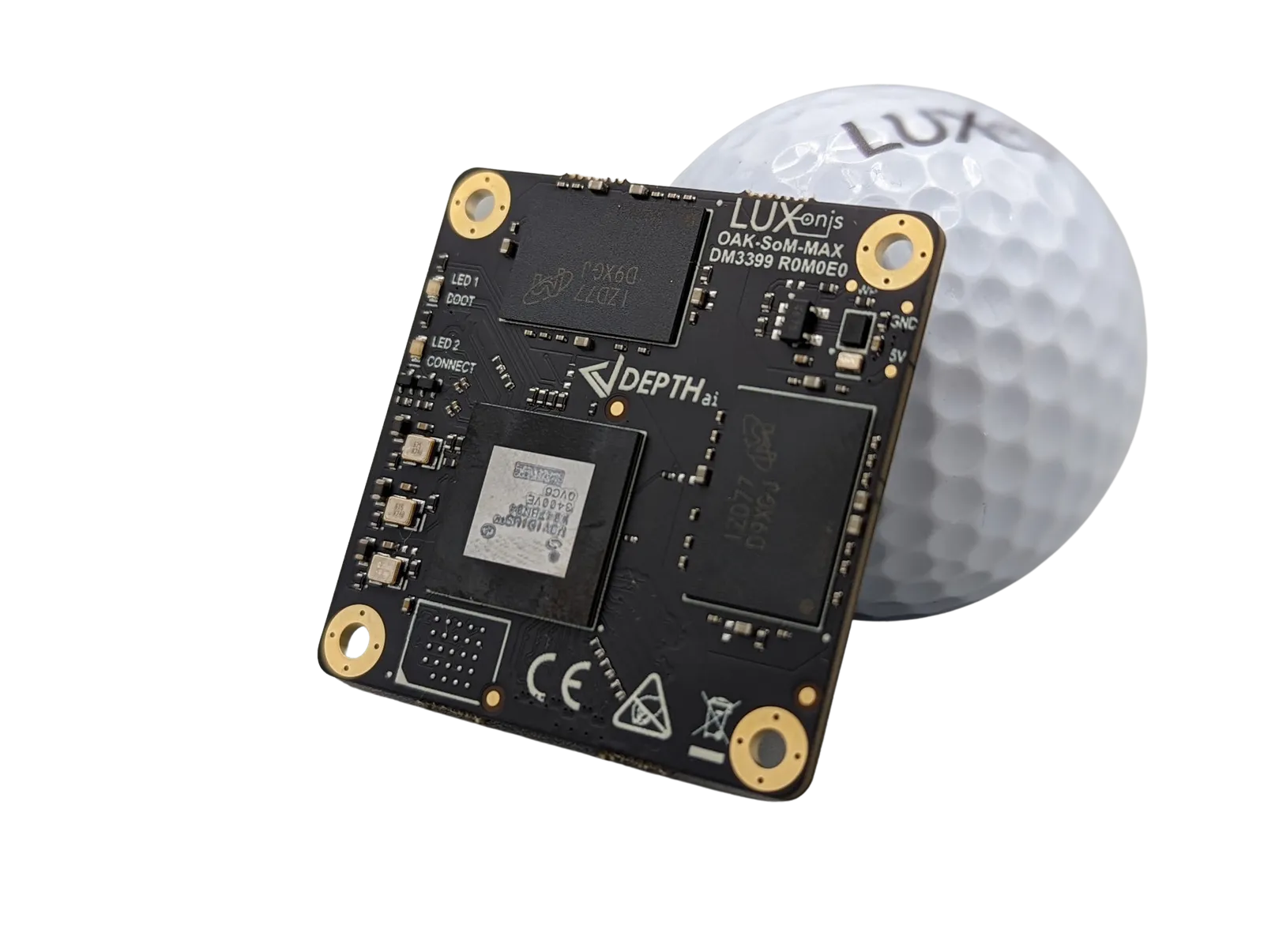

OAK System on Module (SoM) allows integration into top-level systems with a need for a low-power, high-performance, real-time AI and depth perception.

Specification:

• Interfaces with the system through three 10-Gbps-rated 100-pin connectors (DF40C-100DP-0.4V(51))
• 4 GB RAM (2x16GBit)
• Connectors: 3x 100-pin mezzanine connector, which exposes additional MIPI RX/TX lines
• 6x 2-lane MIPI RX lines
• 2x 2-lane, 1x 4-lane MIPI TX lines
• RAM: 2x DDR RAM on-board, which provides maximum performance
• Voltage levels: All I2C buses are 1.8V
• Pull-up resistors: 2.2k pull-up resistors located on SoM
• Min/max data rates: supports the following, all on I2C buses: 1) Standard Mode (100kHz), 2) Fast Mode (400kHz), 3) Fast Mode Plus (1MHz), and 4) High-Speed Mode (3.4MHz)
• I2C0 bus devices: RTC circuit (address 0xD2) and EEPROM (address 0x50)
• USB 3.1 Gen 2


Available in three variants:

OAK-SoM MAX (6x 2-lane MIPI, default configuration)
OAK-SoM-MAX-1 (4x 2-lane MIPI, 1x 4-lane MIPI)
OAK-SoM-MAX-2 (2x 2-lane MIPI, 2x 4-lane MIPI)

Awards:

The OAK-SoM MAX features the and a quad-core ARM CPU. As a result, it is ideal for use in industrial automation, robotics, and security systems.

The product interfaces with the system through three 10-Gbps-rated 100-pin board-to-board mezzanine connector, which carries all signal I/O as well as 5v input. The onboard SMPS system regulates the 5V input and provides all necessary digital and analog power.

OAK System on Module (SoM) allows integration into top-level systems with a need for a low-power, high-performance, real-time AI and depth perception.

Main Features:

This OAK device is built on top of the.

• 3.0 TOPS for AI
• Imaging: ISP, max 6 cameras, 500 MP/s HDR, 3A
• Run any AI model, even custom-architectured/built ones
• Encoding/Decoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking
• Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
• Object tracking: 2D and 3D tracking

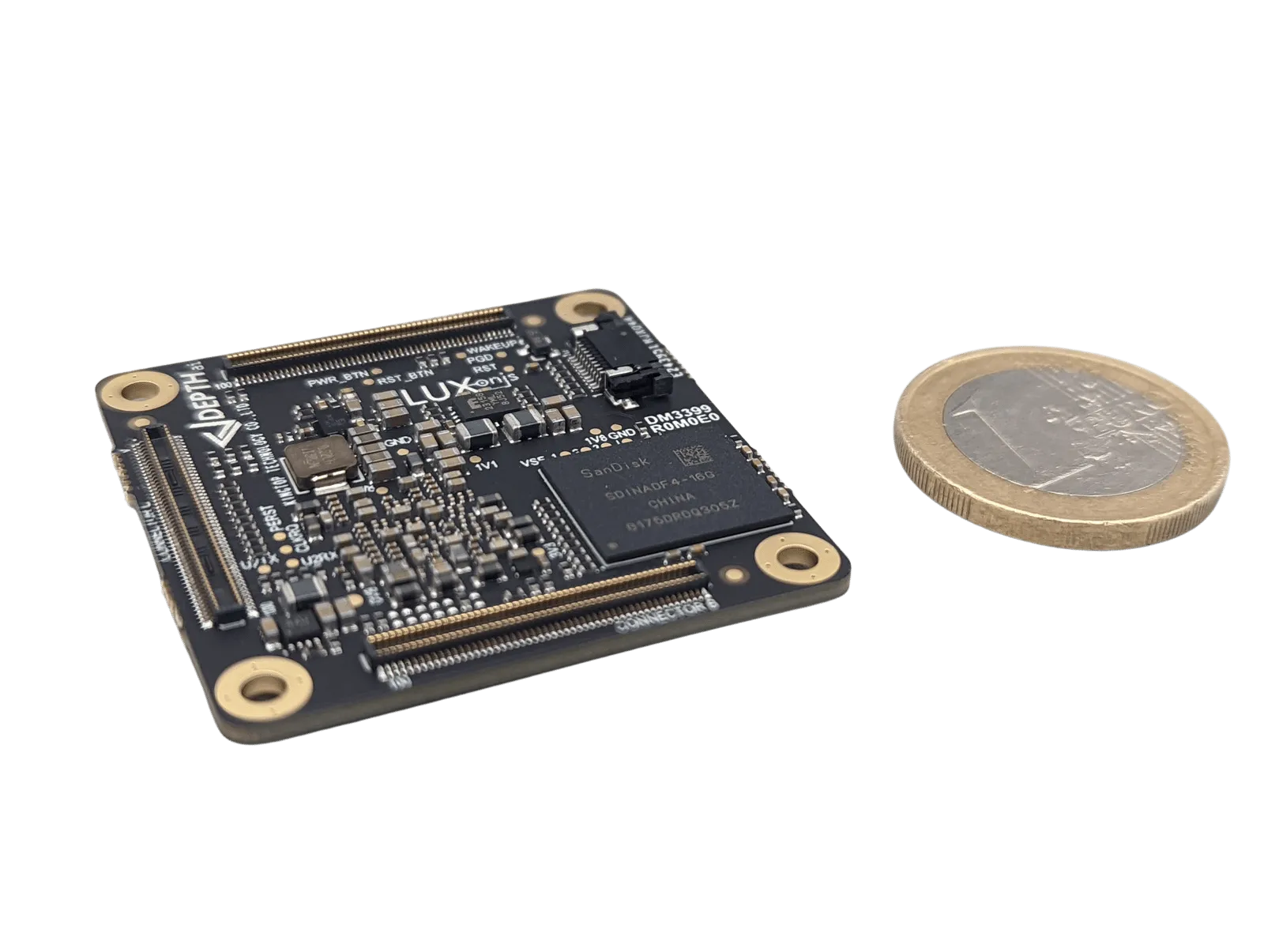

• Dimensions: 40x40x4 mm
• Weight: 5g


Package includes

• OAK-SoM MAX
• Heatsink

• Screws
