• The Numato 32 Channel Ethernet GPIO module is a cost-effective and easily deployable solution for connecting a PC to other electronic circuitry via a network
• This GPIO module can be accessed via a straightforward web interface or Telnet

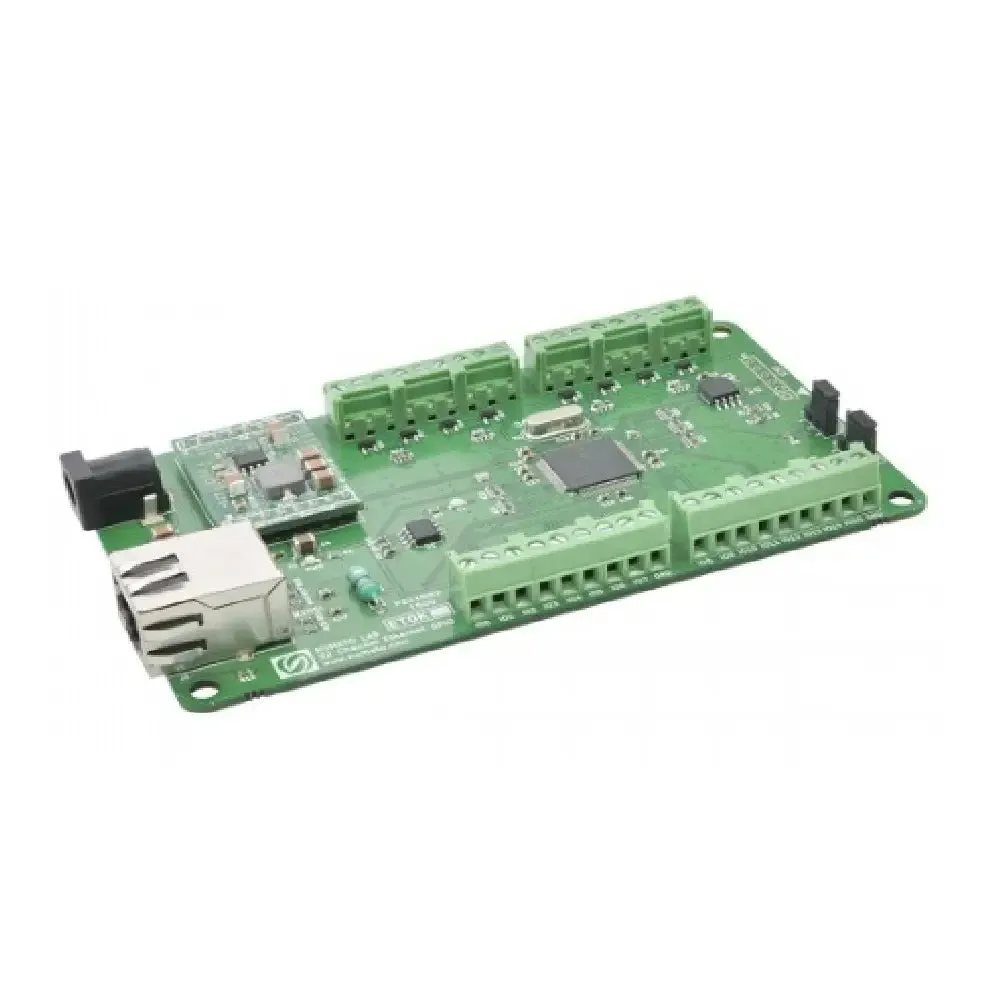

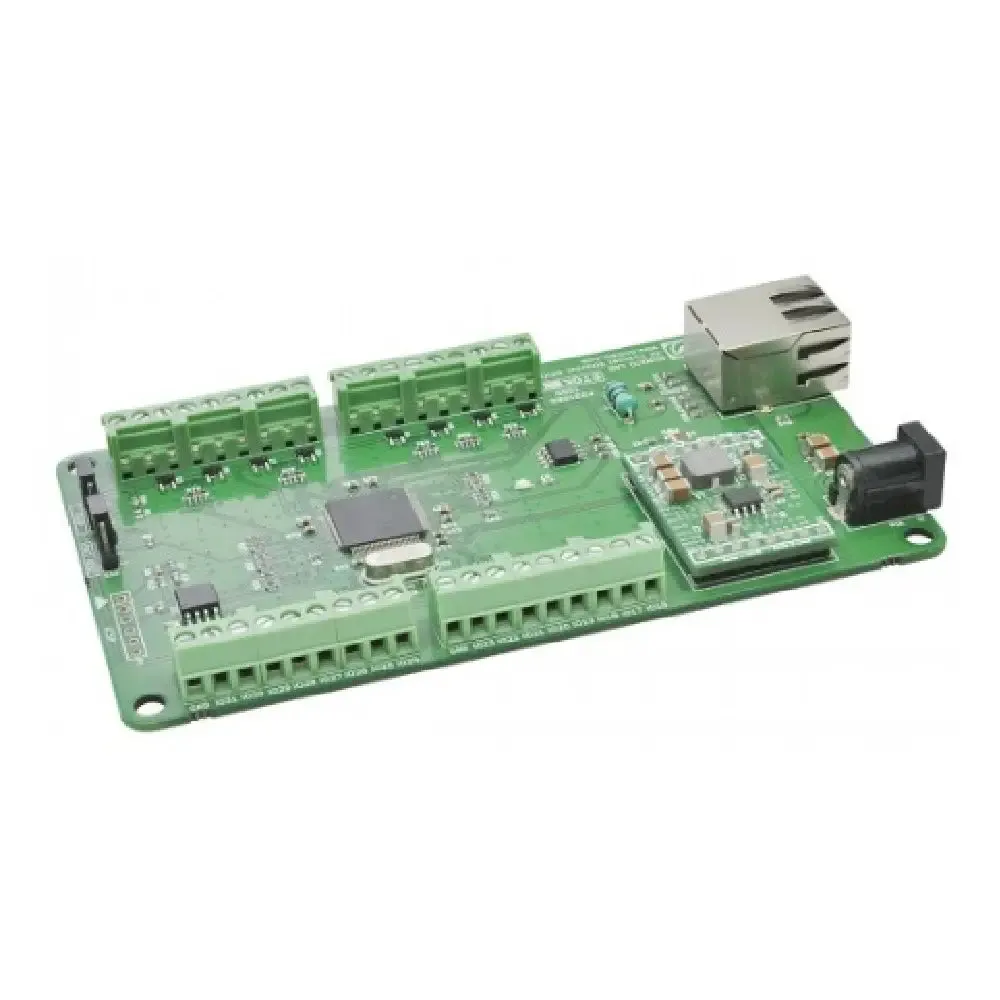

The Numato 32 channel Ethernet GPIO Module w/ Analog Inputs features 32 TTL (3.3V) compatible GPIOs, 14 analog input channels (multiplexed with GPIOs), 10-bit analog input resolution, and all GPIOs can be individually configured as input or output. It can be controlled by using a simple web interface or Telnet, without requiring any TCP/IP protocol knowledge. This module also has a 2, 25, and 8mA source/sink capacity (depending on the IOs) and a unique MAC address. Additionally, it has a reset jumper that resets the board to factory defaults, a password-protected web console and Telnet communication interface, and LED indication for power.

This module is suitable for a variety of applications such as home automation, lighting control, garden equipment control, industriV2al automation, test fixtures, and DIY and hobby projects.
