Product Details
＋
The MuxLab Network Controller is a Linux-based PC that allows users to control hub-installed MuxLab products via an Ethernet Web interface.
When installed on a local area network (LAN), the MuxLab Network Controller can scan the LAN for MuxLab products and allows the user to configure and control these products through an Ethernet Web interface.
Features
- Centralizes control of all MuxLab products
- Provides web interface to manage & control MuxLab products
- Provides web mobile interface for smartphones and tablets
- Provides control APIs (IP & RS-232) for 3rd party control systems
- Supports “Presets" for easier switching configurations
- Allows to control any non-MuxLab IP product
- Serves as a base platform to develop automation control applications

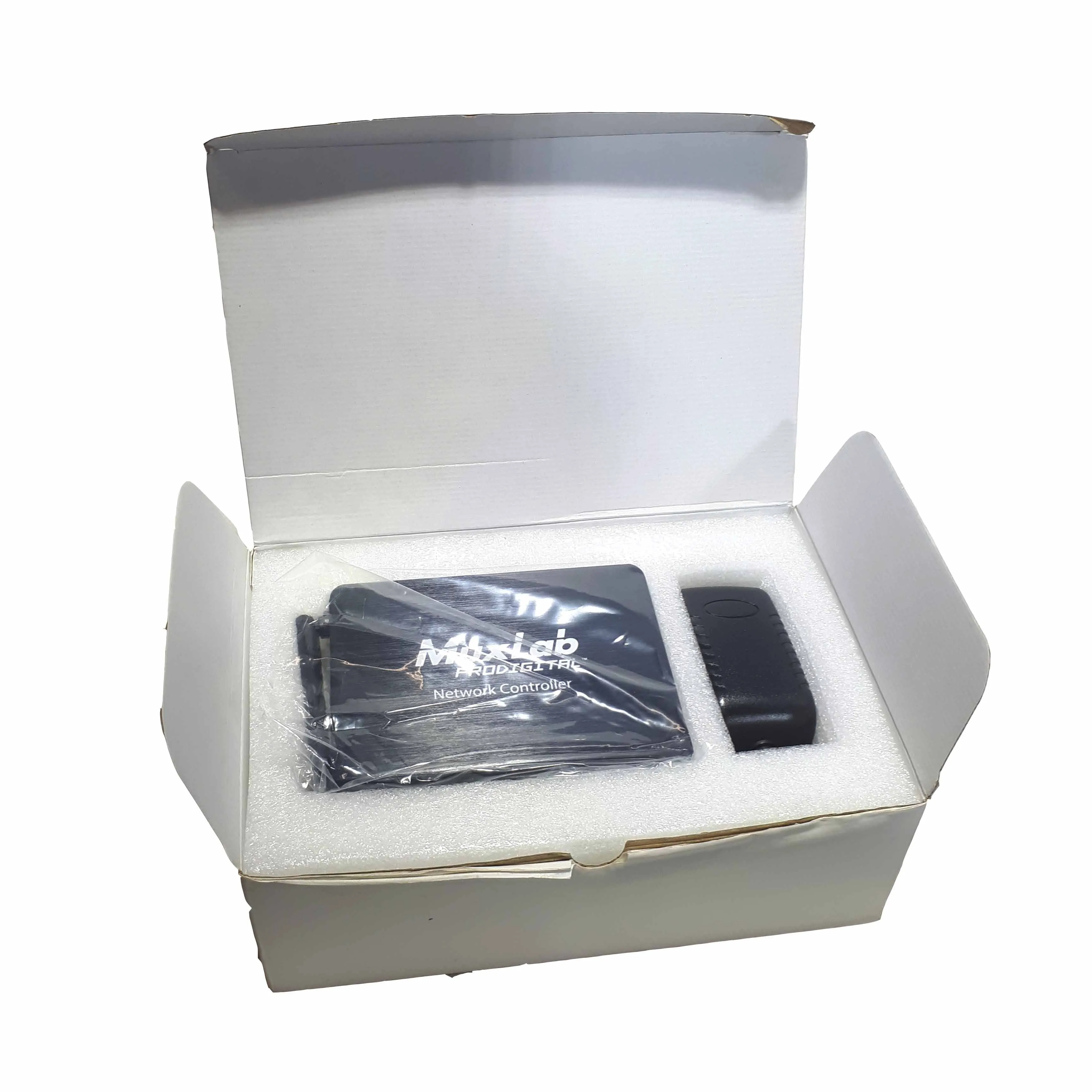

In the Box

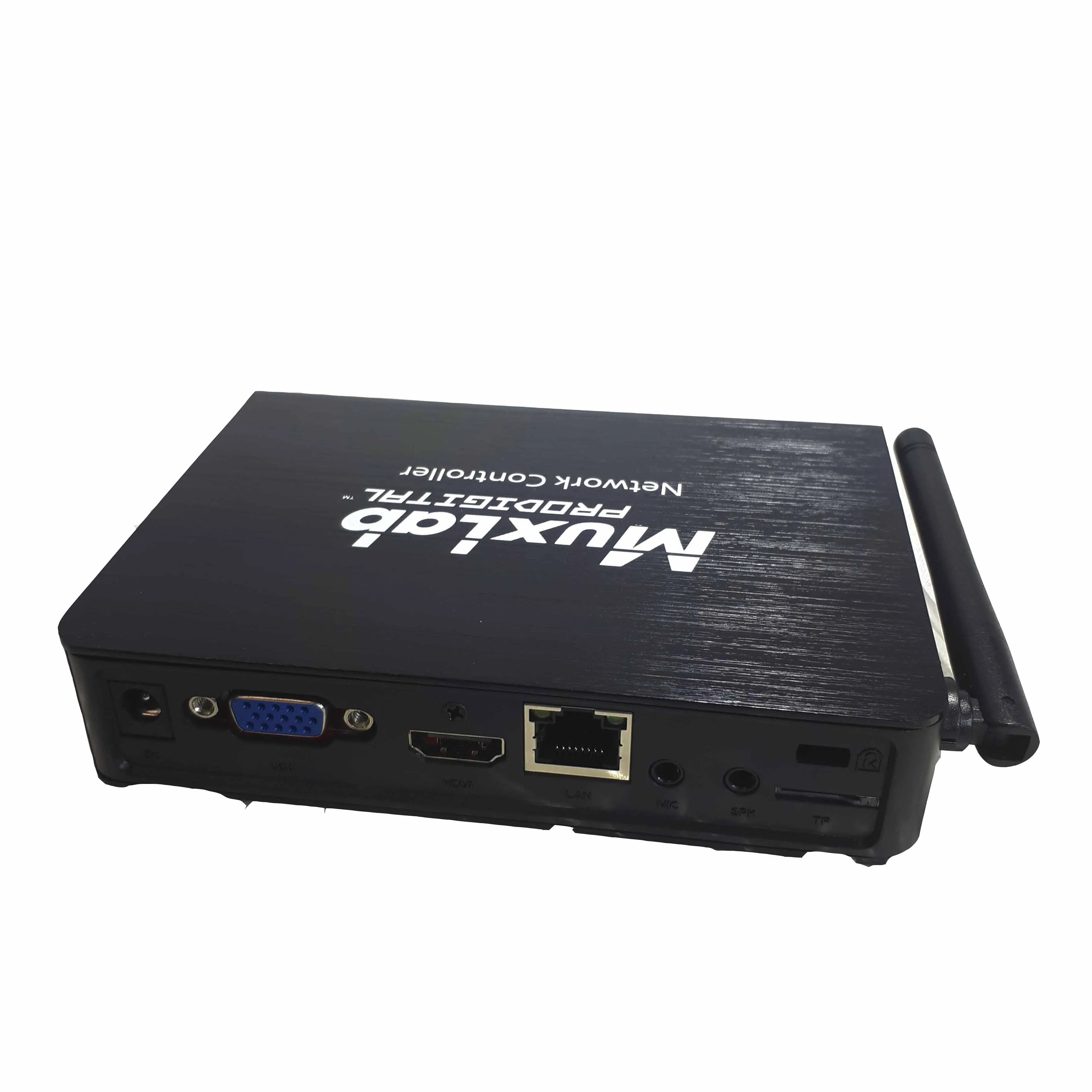

- MuxLab ProDigital Network Controller with Ethernet Web Interface
- MuxLab ProDigital Network Controller
- Wireless antenna
- Power adapter
General
| Type | Thin client |
| Product Form Factor | Ultra small form factor |
| Color | Black aluminum |
Processor / Chipset
| CPU | Intel Atom Z3735F / 1.33 GHz |
| Max Turbo Speed | 1.83 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
Cache Memory
| Installed Size | 2 MB |
| Cache Per Processor | 2 MB |
RAM
| Installed Size | 2 GB |
| Technology | DDR3 SDRAM |
Hard Drive
| Type | Flash - eMMC |
| Capacity | 1 x 32 GB |
Optical Storage
| Type | No optical drive |
Card Reader
| Type | Card reader |
| Supported Flash Memory Cards | microSD, microSDHC, microSDXC |
Monitor
| Monitor Type | None. |
Graphics Controller
| Video Interfaces | VGA, HDMI |
Networking
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0 |
Expansion / Connectivity
| Interfaces | 3 x USB 2.0 1 x HDMI - Type A 1 x LAN - RJ-45 1 x VGA - DB-15 |
Miscellaneous
| Included Accessories | Wireless antenna |
| Compliant Standards | FCC, RoHS, WEEE |
Power
| Device Type | Power adapter |
Operating System / Software
| OS Provided | Ubuntu 10.04 |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Dimensions & Weight
| Width | 5.3 in |
| Depth | 4 in |
| Height | 1.3 in |
| Weight | 17.64 oz |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
Packaging Info
| Package Weight | 1.45 lb |
| Box Dimensions (LxWxH) | 9.7 x 6.5 x 3.2" |
