Specs

Model:

MSP619-14

Item #:

144786

Tool Weight:

5.5 lbs.

Tool Length:

7.125

Tool Width:

Tool Height:

Screw Head Diameter "D":

1.2 - 12

Screw Head Height "t":

0.2 - 6

Screw Length "L":

1.0 - 14

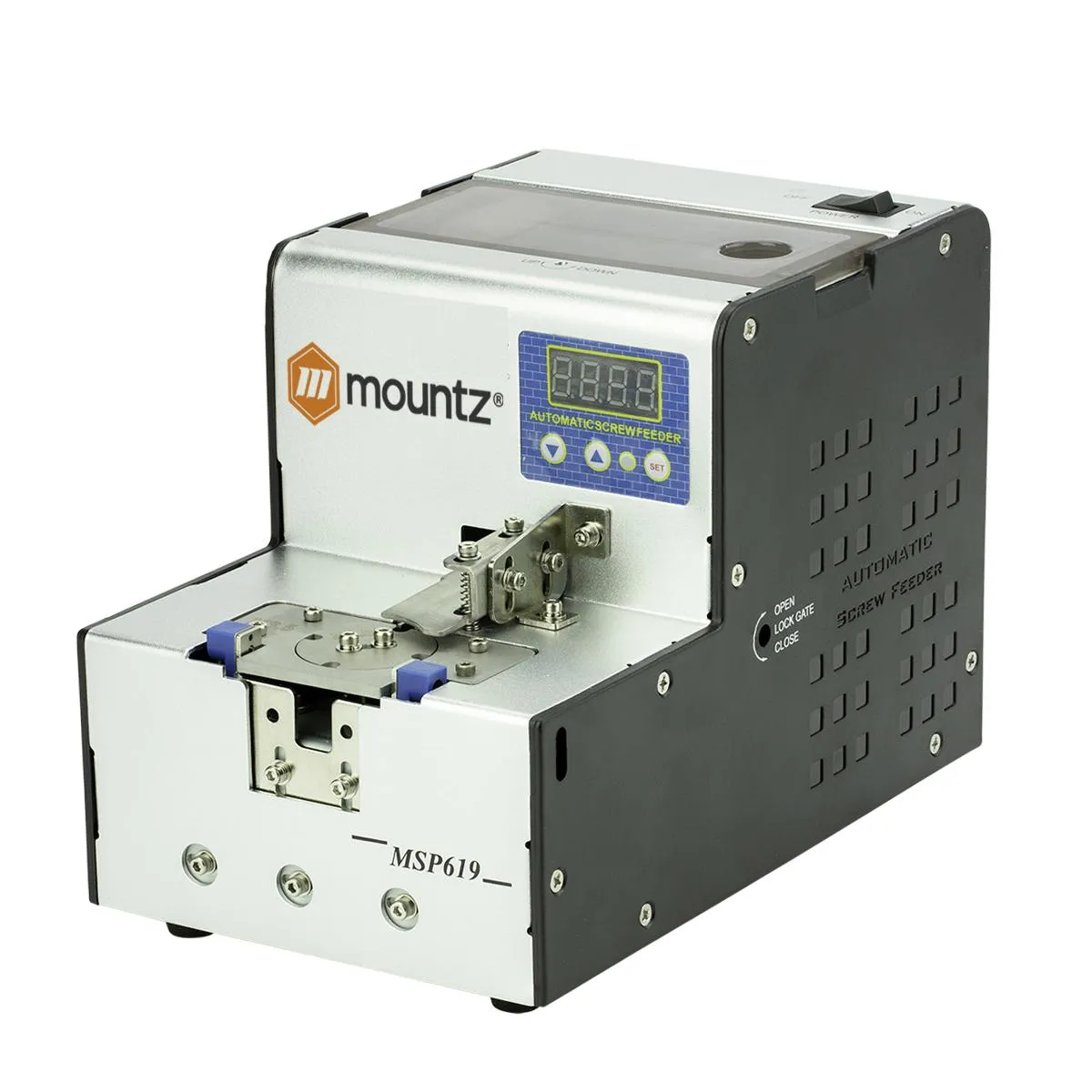

The automation screw presenter is ideal for robotic manufacturing applications. This simple machine operates in combination with automation & robotic screw driving systems. The compact size allows easy installation. The cost-saving device makes the assembly process more efficient by mechanically presenting a screw to a fixed pick-up point. Optimize resources, cut labor costs and increase production capacity with automation equipment.

For cell or line-based assembly, an operator uses a power tool equipped with a vacuum attachment to pick up a screw from the presenter screw guide. Common assembly methods cause assemblers to inefficiently fumble with screws that are stored in bins or shaker trays.
Screws are poured into the hopper of the screw presenter and automatically lined up for dispensing.
This simple mechanism allows trouble-free operation, eliminating jammed or stuck screws.
The cost-effective automated screw presenter is an alternative machine instead of the cumbersome and very expensive screwfeeder systems.
Adjustable to match different screw sizes. No need to change or purchase additional rails.
Smoothly feeds screws. Adjustable vibration and speed settings.
The compact system can fit into and work environment for easy accessibility and provides virtually maintenance-free operation.

Screw Presenter requires the use of a with the power tool.

Need assistance with selecting a screw presenter for your fastening application? Download our and submit with your request.
