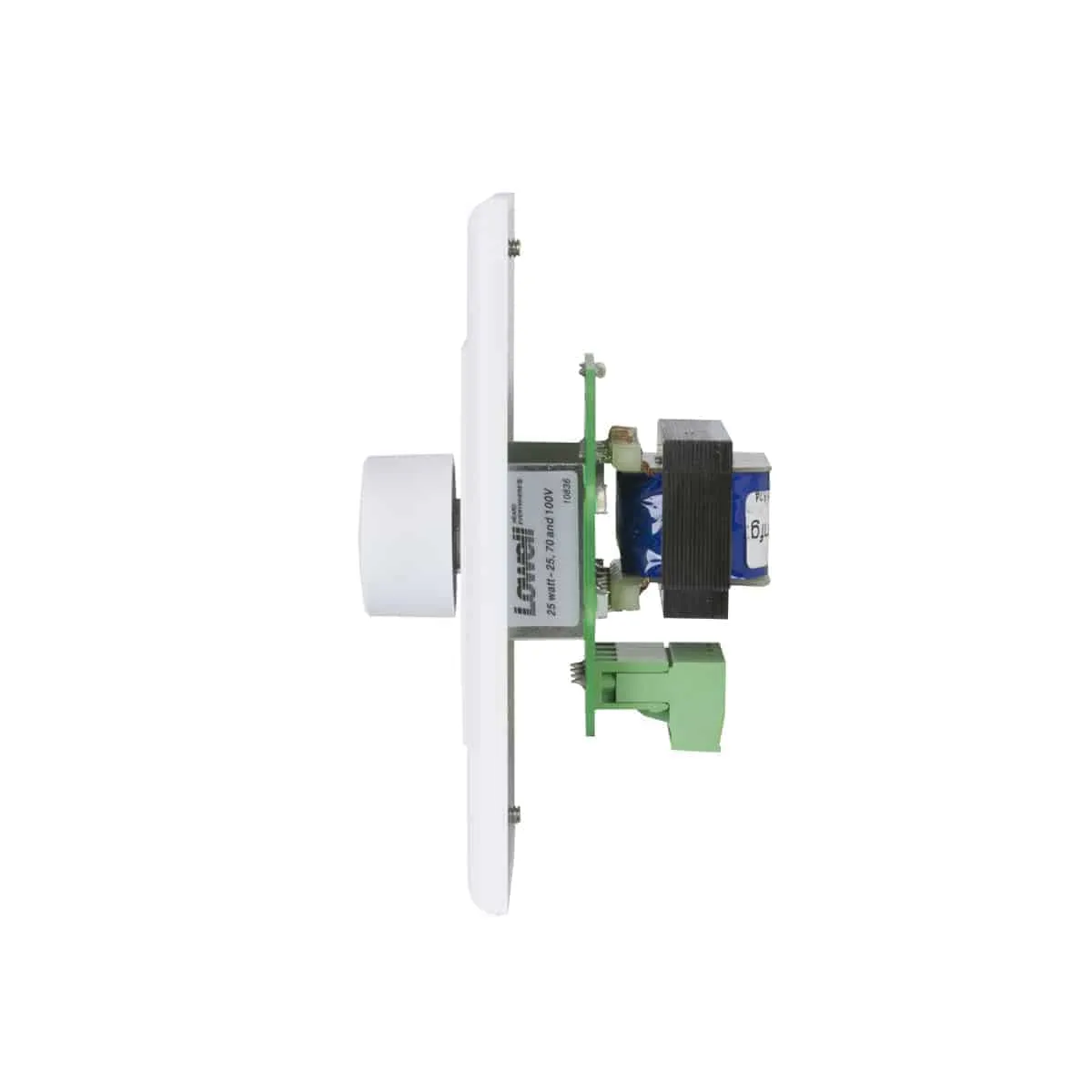

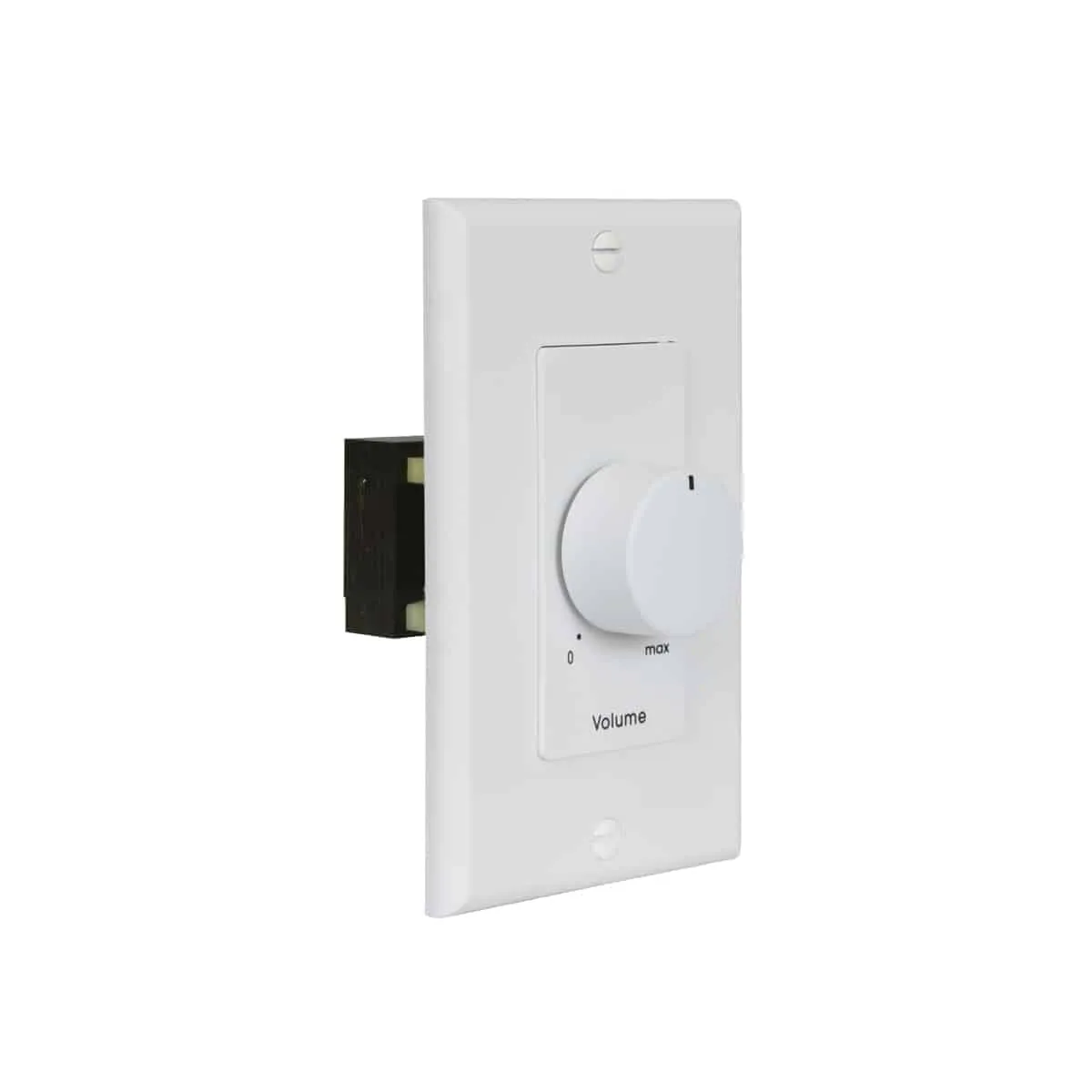

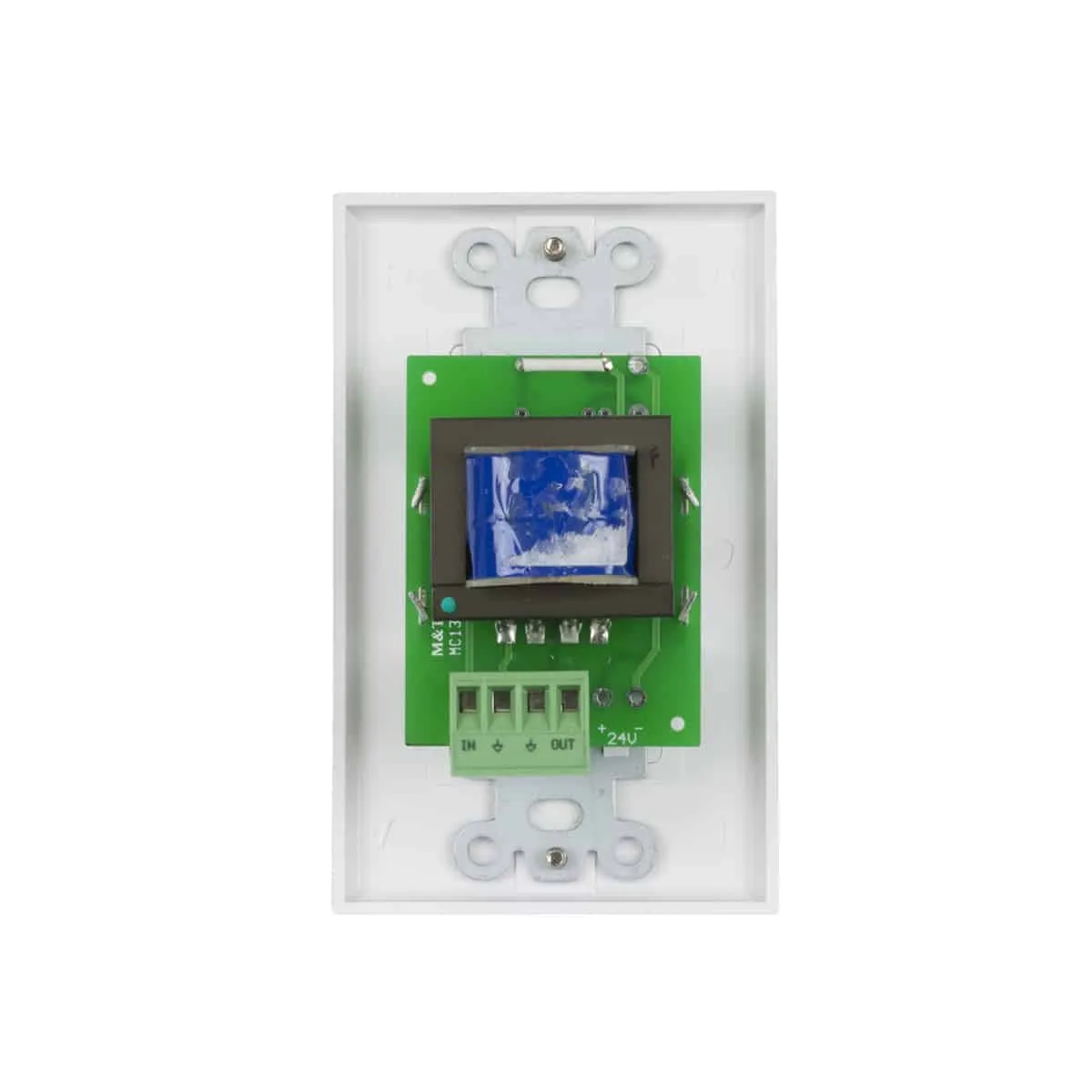

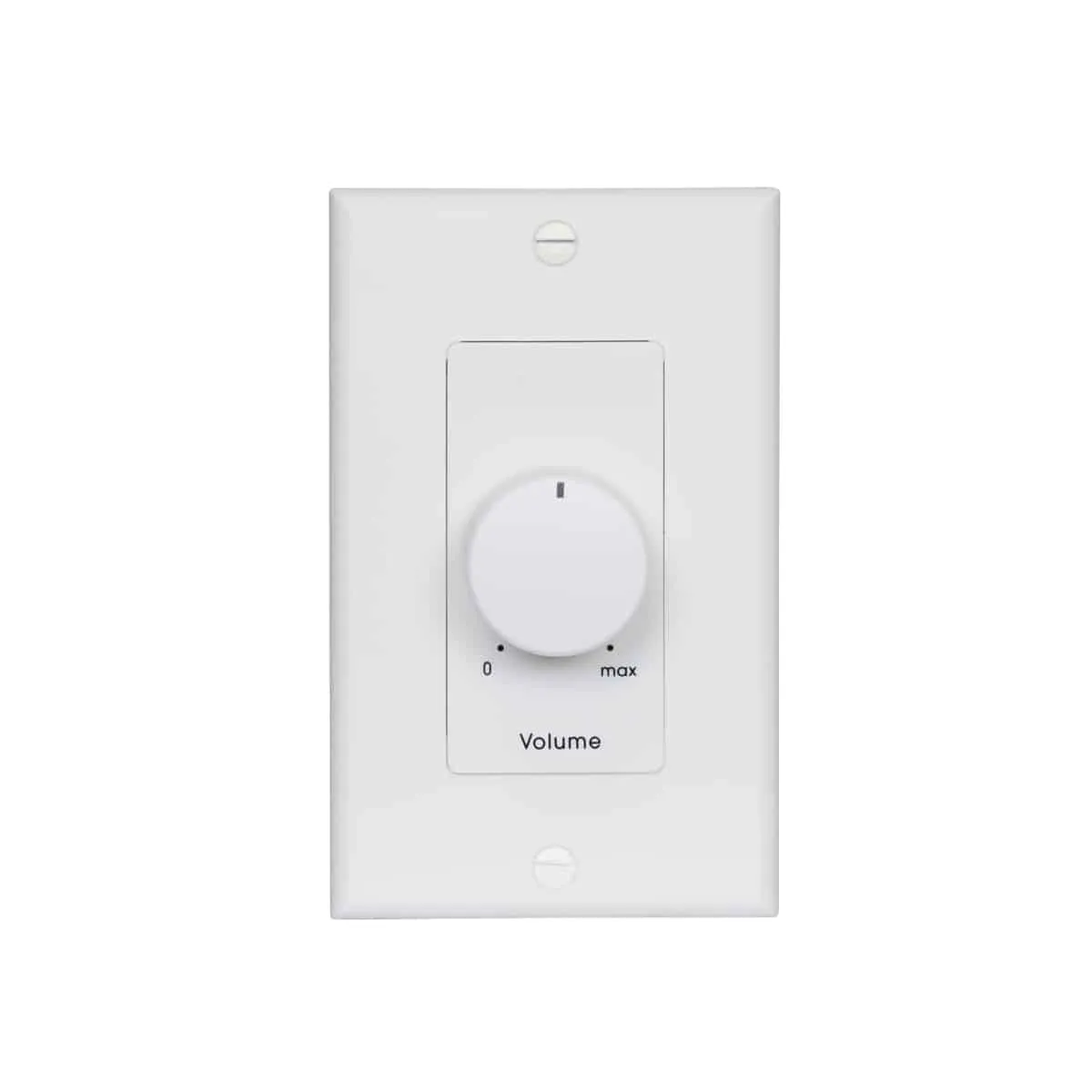

Mono autoformer attenuator volume control with rotary dial for use with 25V/70V speaker line features 25W power rating, 3dB per step attenuation (two steps of 6dB each before off) and Phoenix style plug-in screw termination strips. Includes decorator style one-gang white wall plate.

Specifications

• Power Rating:  25W
• Attenuation:  3dB per step (33dB total)
• Use With:  25V/70V speaker line
• Activation:  Rotary dial
• Volume Positions:  0-10
• Termination:  Phoenix-style
• Wire Capacity:  14-gauge
• Wall Plate:  1-gang decorator style
• Finish:  White
• Fits standard E.O. box (2.125 in. min. depth)
