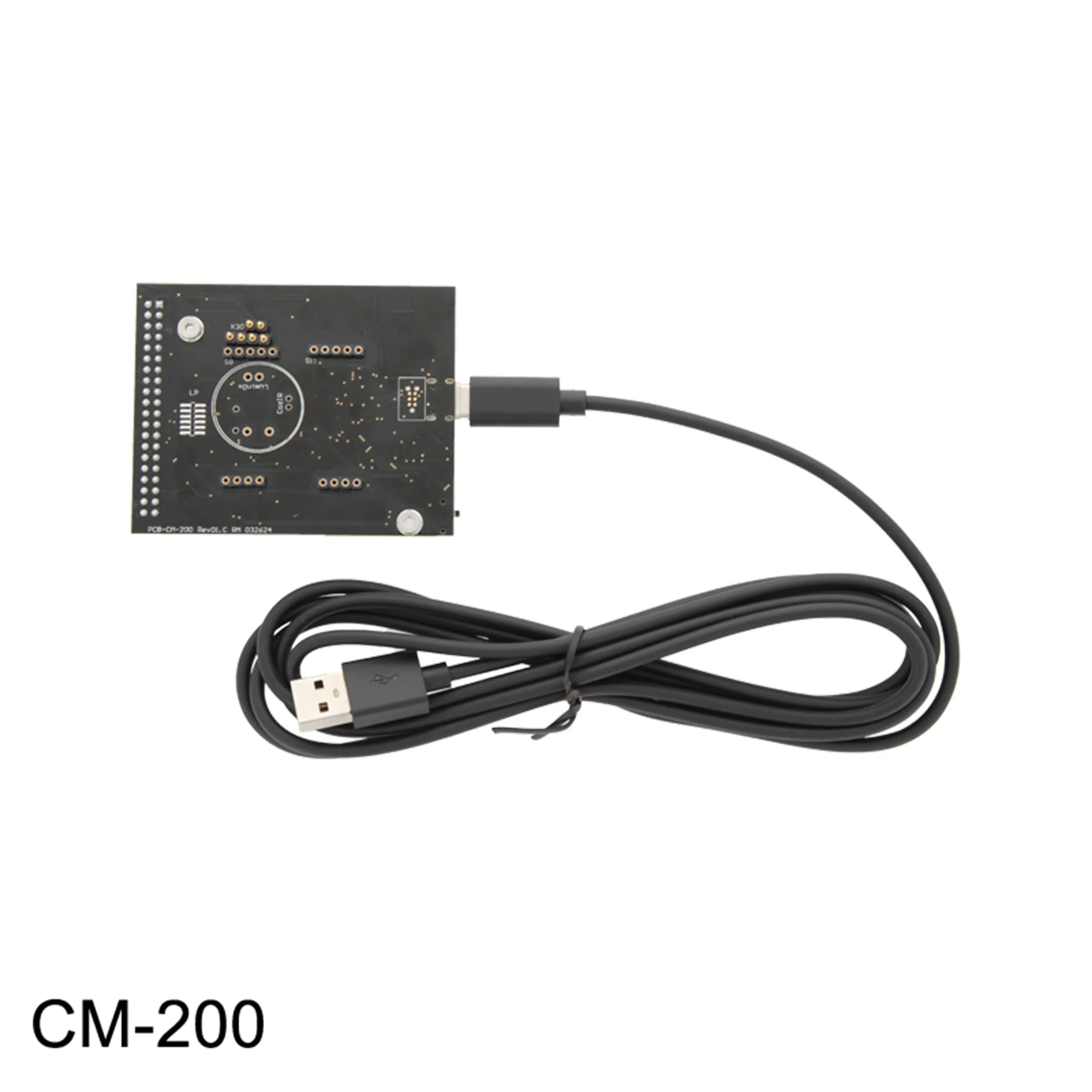

The CM-200 Gas Sensor Development Kit is a PCB developed to help customers, students, researchers, OEMs and hobbyists go from concept to product as quickly as possible. This PCB can interface with our free or any terminal application to evaluate sensors and view the communication protocols.

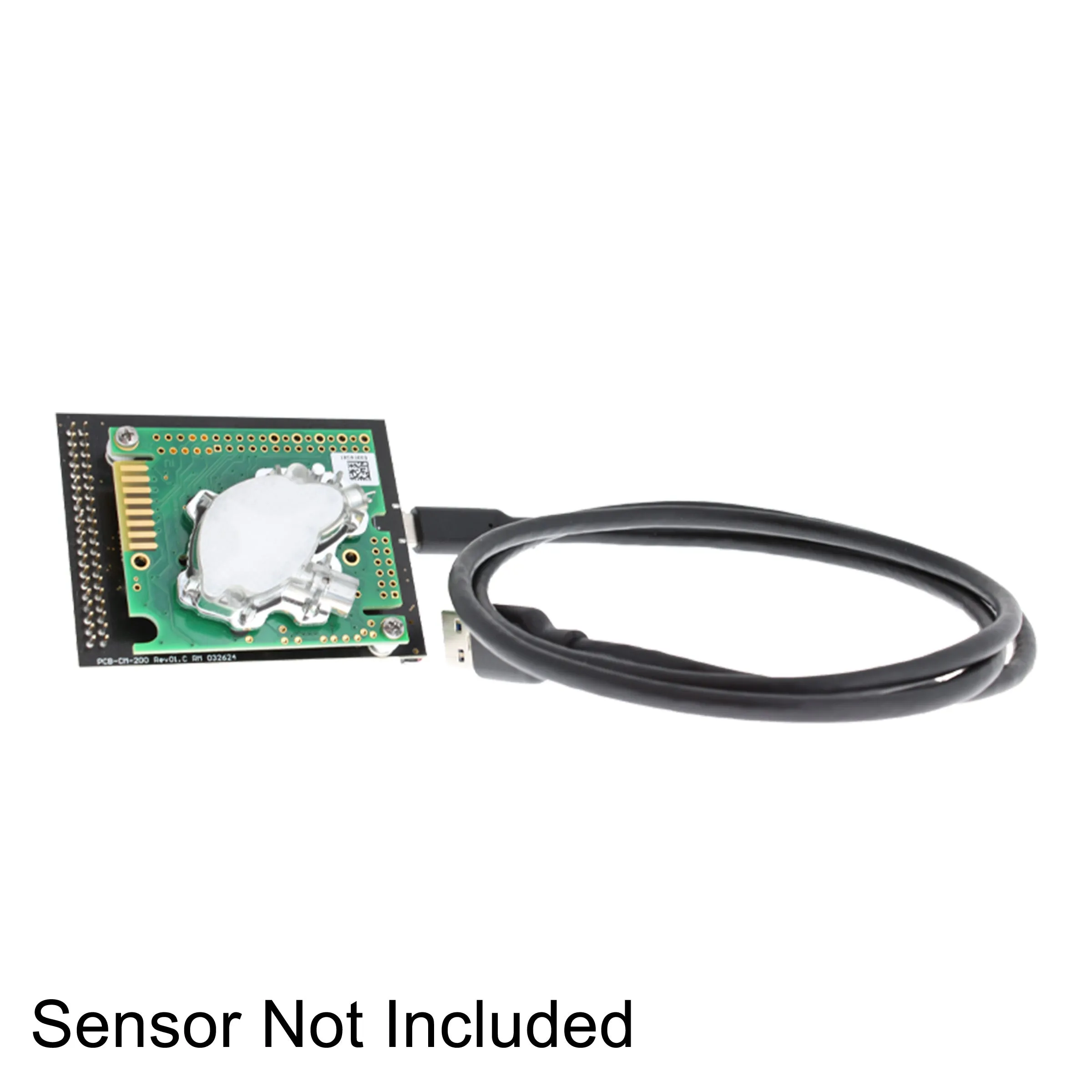

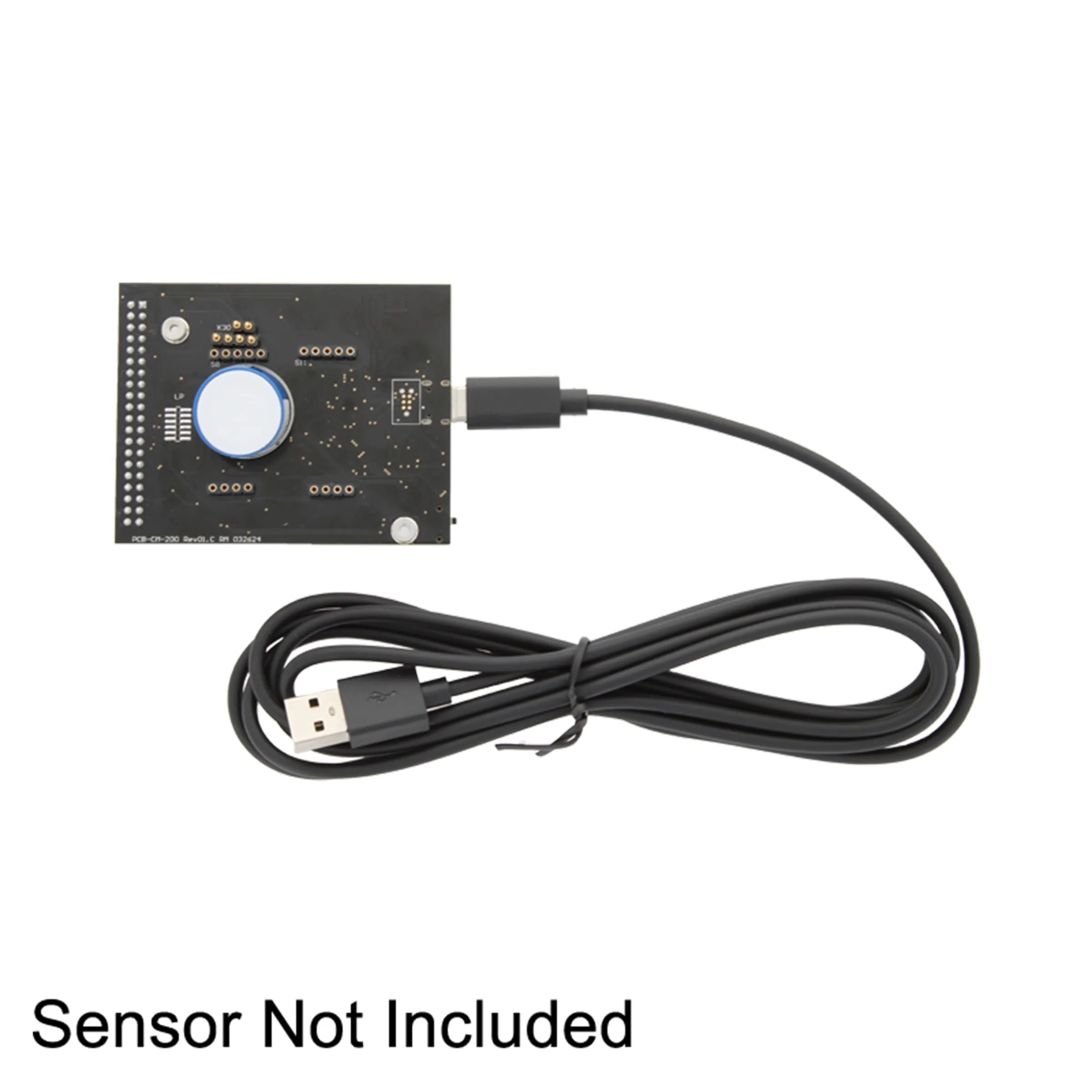

*Please note: Prior to purchasing please make sure to check the specifications to see all compatible sensors as shown below in the "works with these sensors" list*

Use the CM-200 as an Arduino Shield with the example code provided in this repository can rapidly get a prototype running for interfacing our most popular sensors with Arduino Uno and Arduino Mega. or use the CM-200 as a Raspberry Pi Hat to prototype using the Raspberry Pi ecosystem.

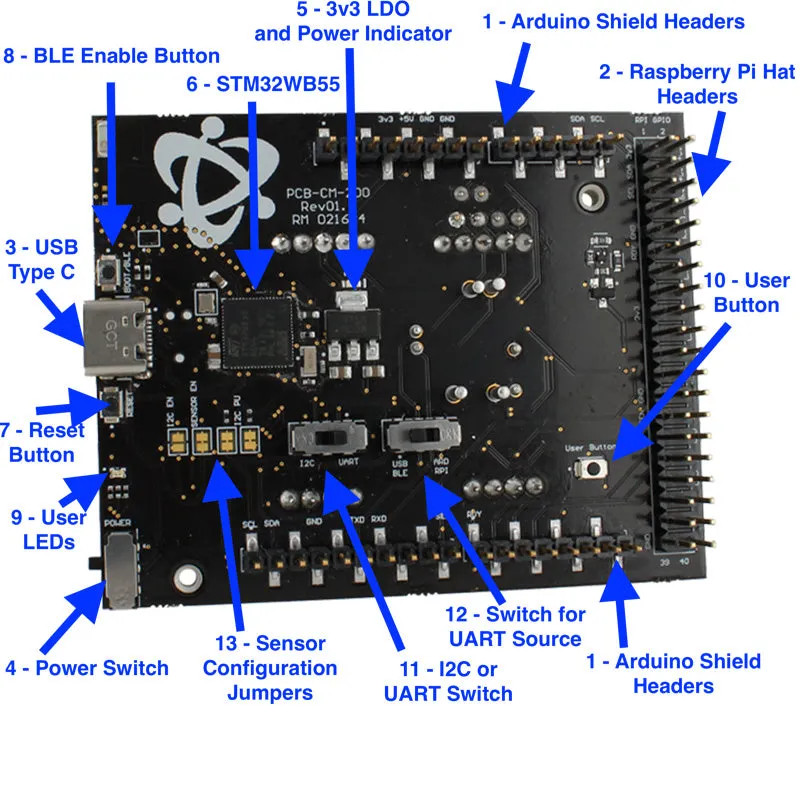

Finally, users can develop production ready code with the onboard STM32WB55, with available BLE, USB, User LEDs, User Buttons, and multiple communication protocols.is designed to make it easy to use our most popular gas sensors.

For quick, real-time data analysis use the . Plug in a sensor, plug the PCB into a PC's USB port, and begin to graph and store data as industry standard .csv files in minutes for project analysis, trends and reporting.

Whether you are evaluating production code, building prototypes, doing data analysis or are in need of a full software development platform, the CM-200 is the right technology for you.

Please note: To ensure safety and proper operation, please observe precaution regarding electrical components on the CM-200 near other metal materials.

Features

• “Plug and Play” sensor compatibility
• Cross-platform operating systems
• Open source and extensible software
• Simple, clear programming environment
• Data logging
• Ultra-low power
• Arduino Uno Shield Capable
• Raspberry Pi Hat Capable
• Programmable STM32WB
• Git Repository with Full Working Code
