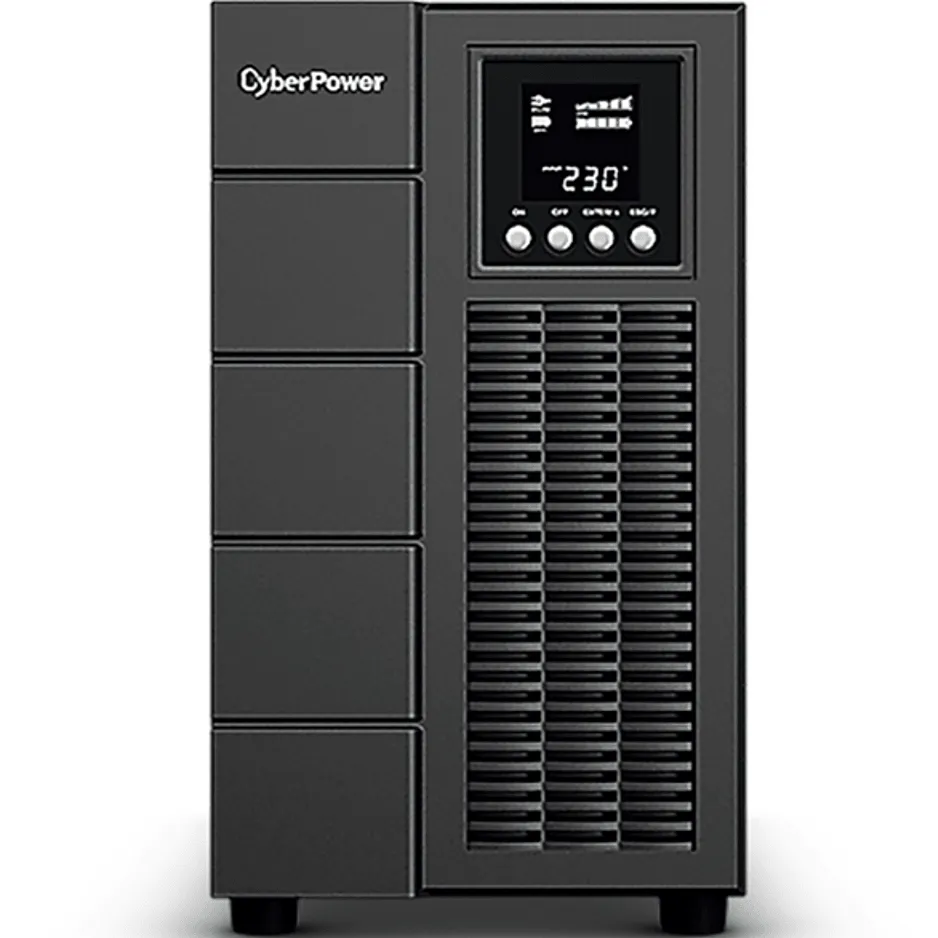

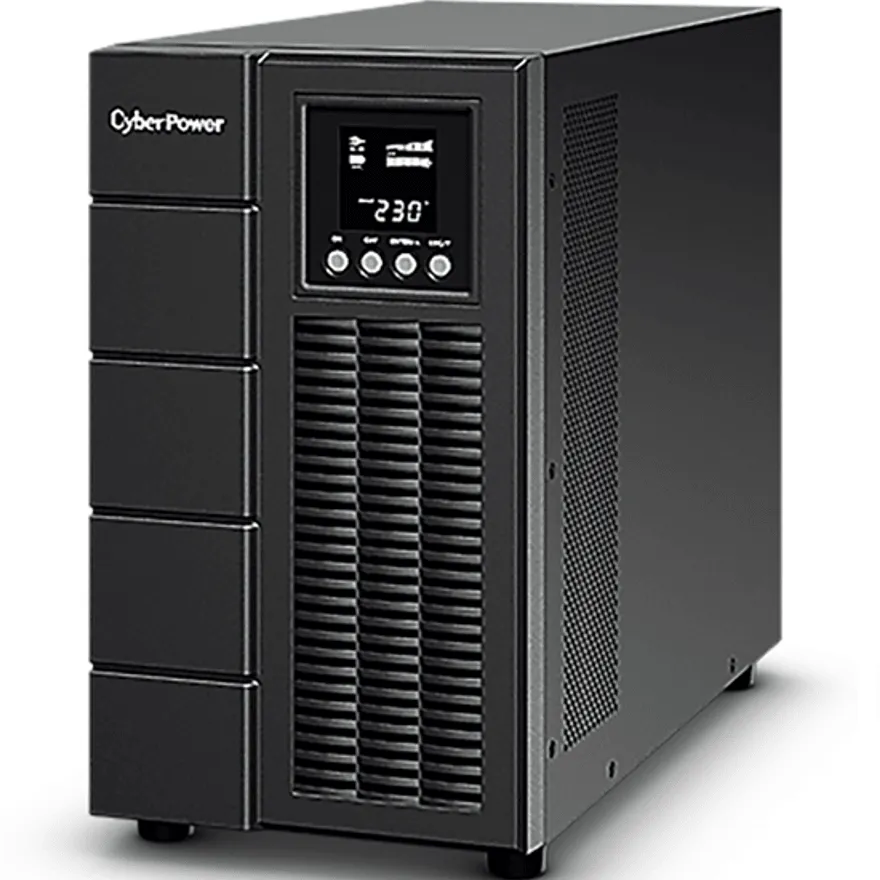

CyberPower OLS2000E is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.

• Online (Double Conversion) UPS Topology
• Generator Compatible
• Zero Transfer Time
• Extended Battery Module (EBM)
• EMI and RFI Filtration
• LCD Status Display
• PowerPanel® Management Software
• ECO Mode
• Overload Protection
• Smart Battery Management (SBM)
• Surge and Spike Protection
• Phone/Fax/Modem/DSL/Network Protection
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability (Optional)

Phase Single Phase

Form Factor Tower

UPS Topology Online Double Conversion

Energy Saving Technology Online ECO Mode Efficiency > 95%

Active PFC Compatibility Yes

Input

Generator Compatibility Yes

Nominal Input Voltage ( Vac ) 230 ± 10%

Input Voltage Range ( Vac ) 160 ~ 300

Adjustable Voltage Range ( Vac ) 0~50% Load for 110 ~ 300 Vac

• 0~60% Load for 120 ~ 300 Vac
• 0~80% Load for 140 ~ 300 Vac
• 0~100% Load for 160 ~ 300 Vac

Input Frequency ( Hz ) 50 ± 10

• 60 ± 10

Input Frequency Detection Auto-sensing

Rated Input Current ( A ) 9

Input Power Factor 98

Input Connector Type IEC C20

Detachable Power Cord Plug Type AU x 1

Power Cord Length (ft.) 9

Power Cord Length (m.) 8

Output

Capacity (VA) 2000

Capacity (Watts) 1800

On Battery Waveform Pure Sine Wave

On Battery Voltage(s) ( Vac ) 208 ± 1%

• 220 ± 1%
• 230 ± 1%
• 240 ± 1%

Output Voltage Setting Configurable

On Battery Frequency ( Hz ) 50 ± 0.5%

• 60 ± 0.5%

Output Frequency Setting Configurable

Power Factor 9

ECO Mode Voltage Tolerance ± 15 %

Overload Protection Internal Current Limiting, Circuit Breaker, Fuse

Overload Protection (Line Mode) 110~120% Load for 1 min, >120% Load Immediately

Overload Protection (Battery Mode) 110~120% Load for 10 sec, >120% Load Immediately

Overload Protection (Bypass Mode) >130% Load Immediately

Crest Factor 3 : 1

Harmonic Distortion (Linear Load) THD＜3%

Harmonic Distortion (Non-linear Load) THD＜5%

Internal Bypass Automatic Bypass, Manual Bypass

Outlet(s) - Total 5

Outlet Type Hardwire Terminal Block x 1

• IEC C13 x 4

Outlet(s) - Battery & Surge Protected 4

Typical Transfer Time ( ms ) 0

Battery

Runtime at Half Load ( min ) 15

Runtime at Full Load ( min ) 5

Typical Recharge Time ( Hours ) 5

Maximum Charging Current ( A ) 1

Start On Battery Yes

Smart Battery Management (SBM) Yes

User-replaceable No

Battery Type Sealed Lead-acid

Single Battery Capacity ( AH ) 12 V 7 AH

Compatible Extended Battery Module (EBM) BPSE72V45A

EBM Quantity ( pcs ) 3

Surge Protection & Filtering

Surge Suppression ( Joules ) 440

EMI/RFI Filtration Yes

Phone/Network Protection RJ11/RJ45 (Combo) 1-in, 1-out

Management & Communications

LCD Panel Yes

LCD Information Display Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

LCD Setting & Control Mode Setting, Alarm Setting, Input & Output, Battery Setting

HID Compliant USB Port(s) 1

Emergency Power Off (EPO) Port Yes

Audible Alarms Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery

Management Cable ( pcs ) Power Cord x2, USB Cable x1, Phone Line x1

Power Management Software PowerPanel® Business (Recommended)

SNMP/HTTP Remote Monitoring Yes - with optional RMCARD205

Physical

Enclosure Construction Metal

Color Black

Physical Size - UPS Module

Dimensions (WxHxD) (in.) 72 x 12.27 x 16.38

Dimensions (WxHxD) (mm.) 196 x 337 x 416

Weight (lbs.) 47

Weight (kg.) 8

Shipping Dimensions

Dimensions (WxHxD) (in.) 61 x 18.03 x 20.43

Dimensions (WxHxD) (mm.) 295 x 458 x 519

Weight (lbs.) 32

Weight (kg.) 26

Environmental

Operating Temperature (°F) 32 ~ 104

Operating Temperature (°C) 0 ~ 40

Operating Relative Humidity (Non-condensing) ( % ) 20 ~ 90

Operating Elevation ( feet/meters ) 0-5,000 feet (0-1,500 meters)

Storage Temperature (°F) -4 ~ 122

Storage Temperature (°C) -20 ~ 50

Storage Relative Humidity (Non-condensing) ( % ) 10 ~ 90

Storage Elevation ( feet/meters ) 0-5,000 feet (0-1,500 meters)

Online Thermal Dissipation ( BTU/hr ) 666

Audible Noise at 1.5M from Surface of Unit ( dBA ) 45

Certifications

Certifications CE, RCM

RoHS Yes
