Product Details
＋
- Conner Concrete Crack Monitor Measurement±1 mm (±0.04") tick marks on X-Y axes; ±0.5 mm (±0.02") discrimination Horizontal Measurement:±20 mm (±0.79") horizontal and ±10 mm (±0.38") vertical range.

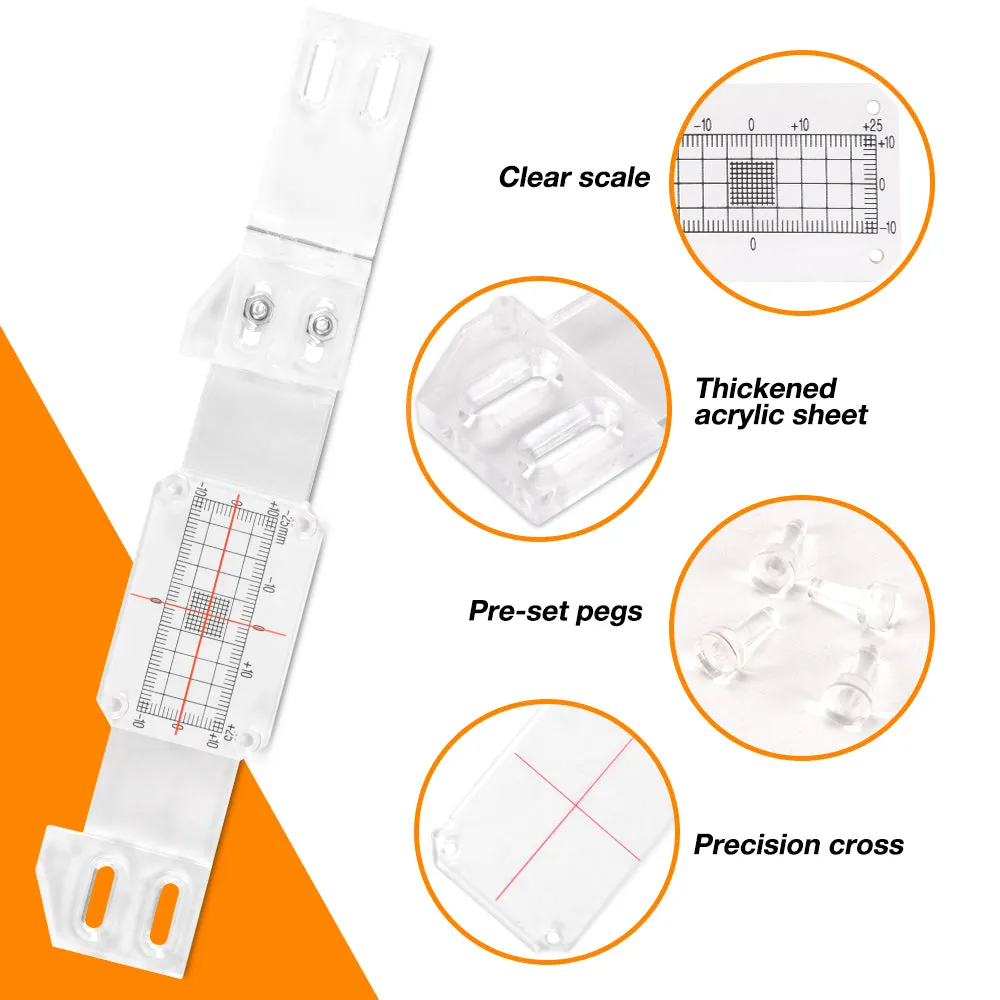

- Crack Monitors: The Conner Concrete Crack Monitor will be shown by a movement of the cross hairs over the measuring scale (40 x 20 mm). The standard model for monitoring displacements in two directions (top-bottom/left-right).

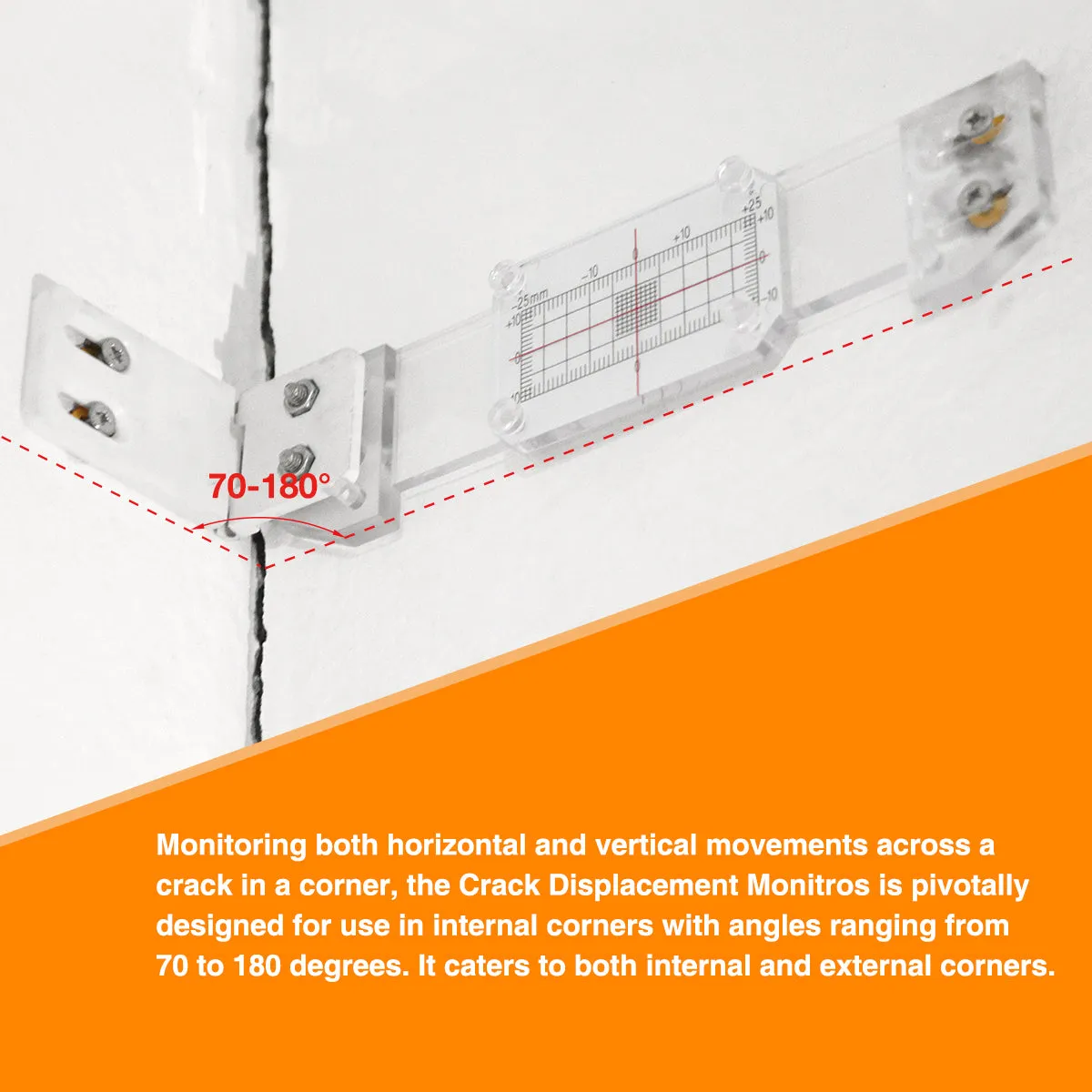

- Conner Concrete Crack Monitor Updated added two fixed adapters, so you can fix it with zero with one hand. You can use our Corner Crack Monitor to monitor the horizontal or vertical movement of cracks on a plane. It is a precision instrument.

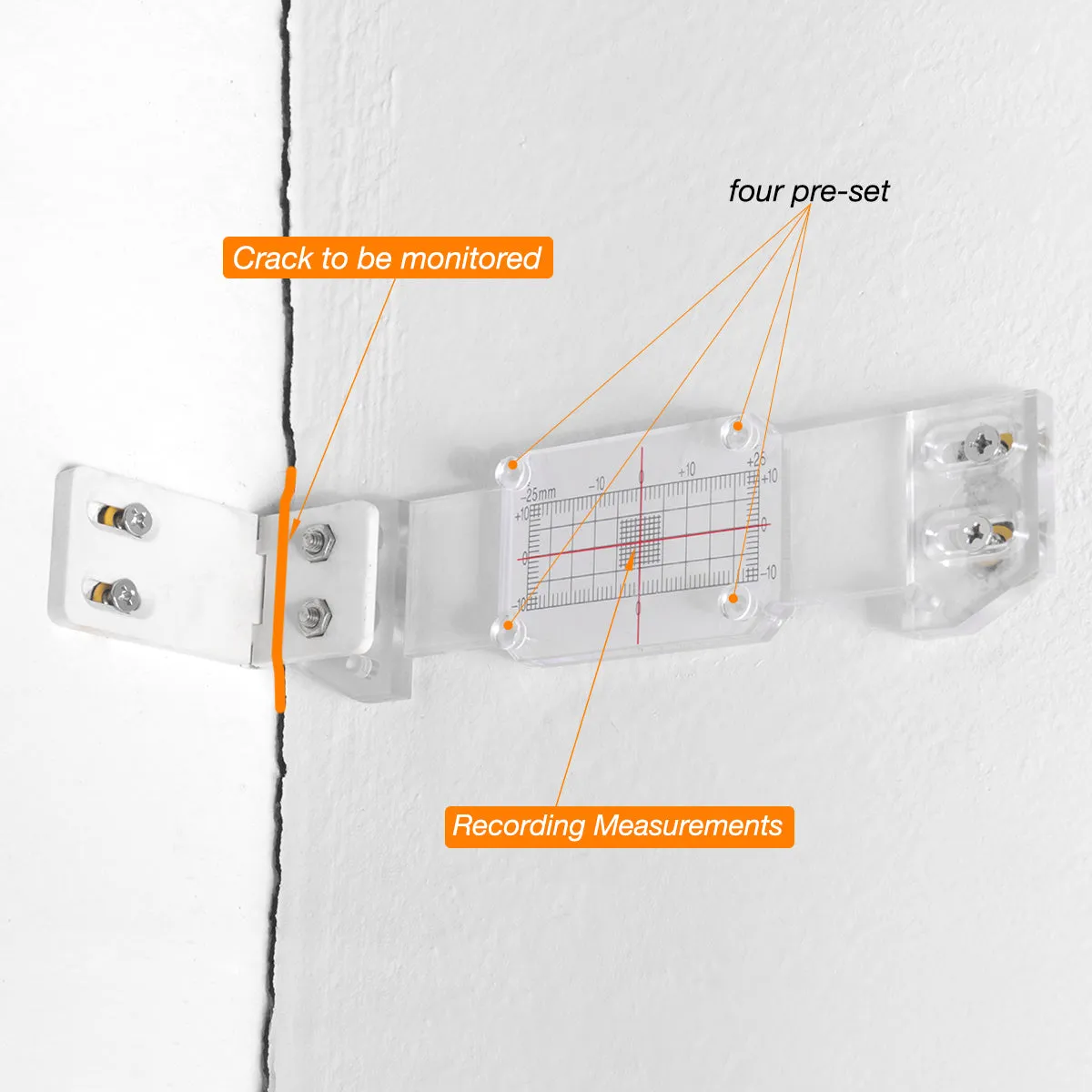

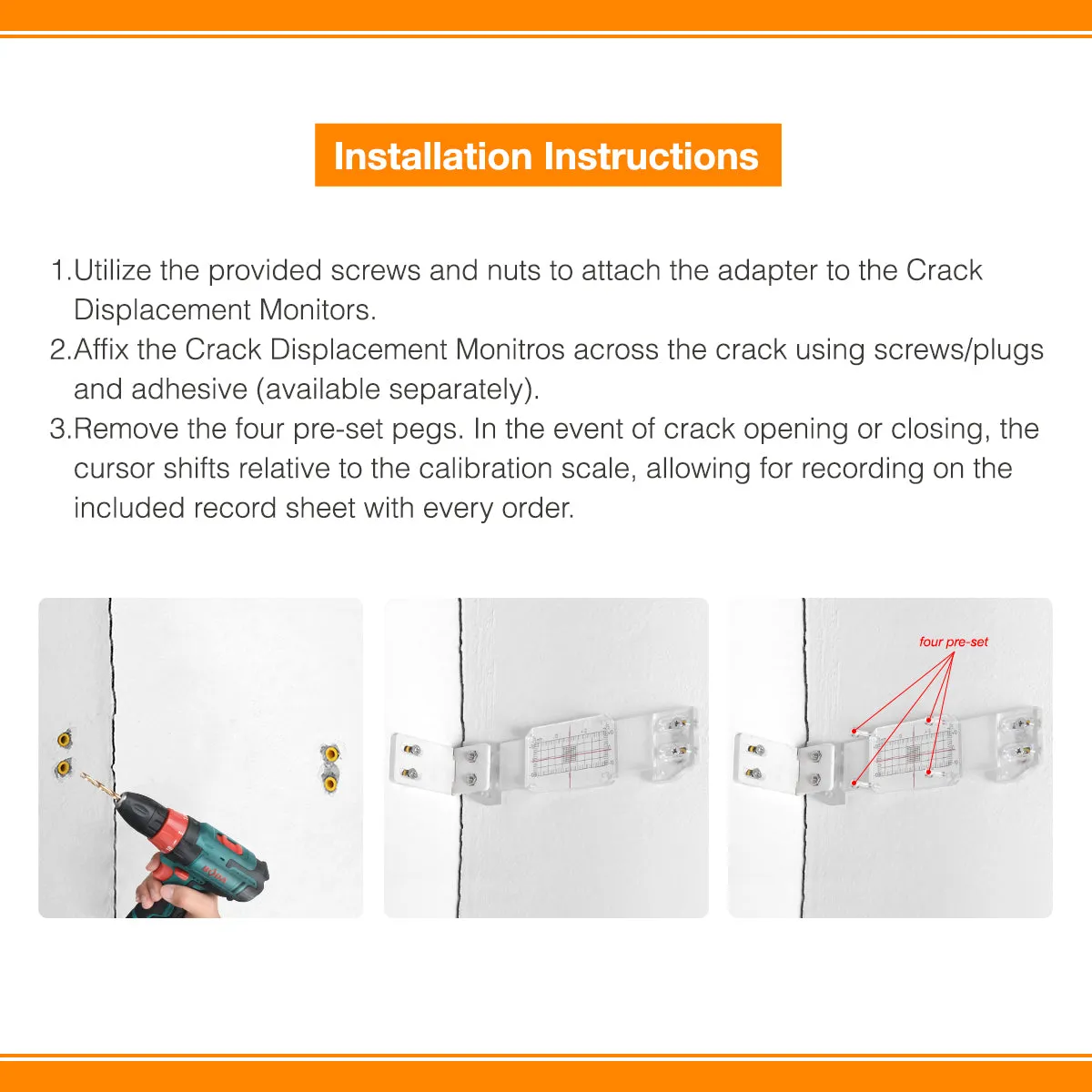

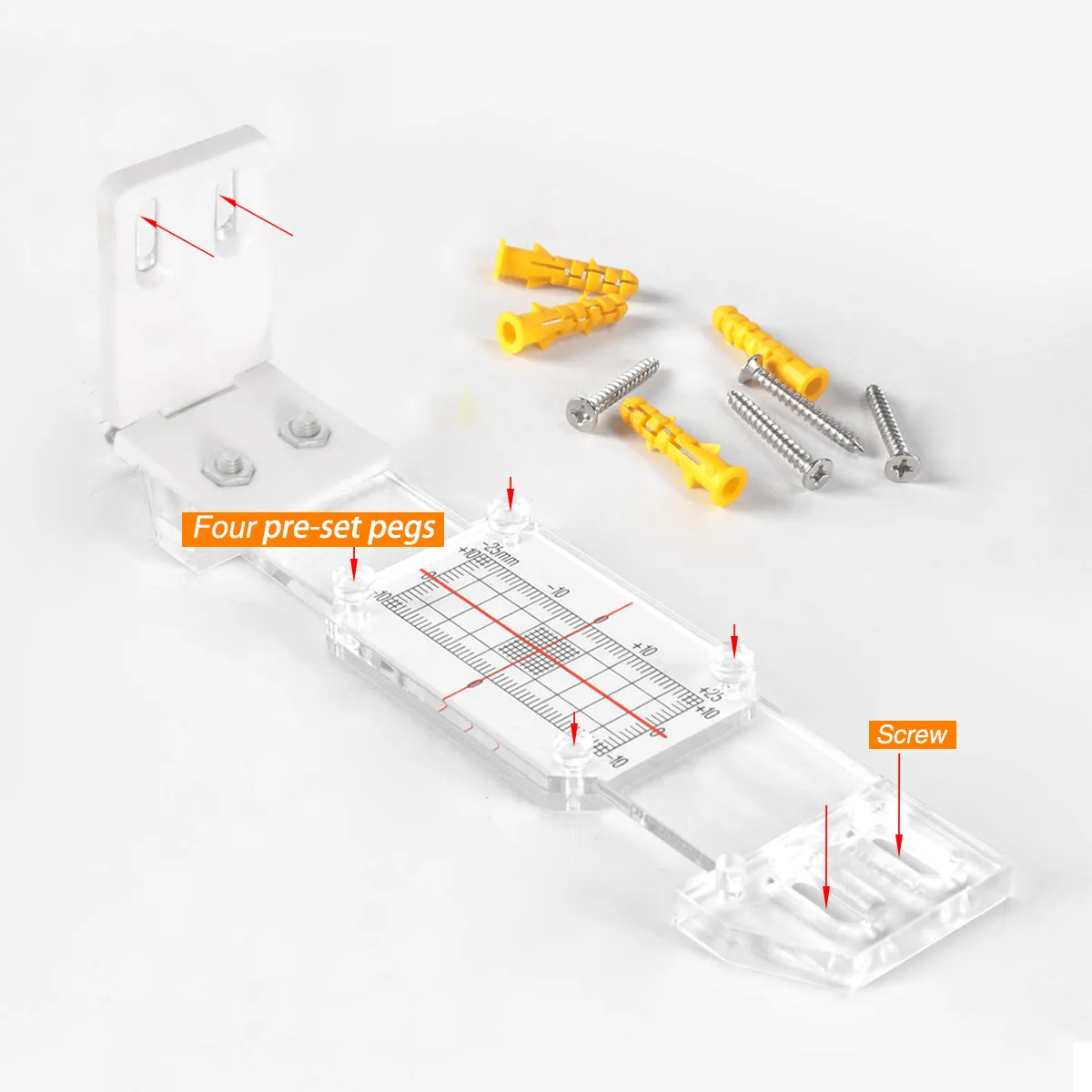

- The Crack Monitors is fixed across the crack using screws and plugs and/or adhesive Fix the Crack Monitors over the crack with the vertical 0 lines on the calibration scale parallel with the crack to be monitored. Ensure the plate with the engraved right-hand side of the crack. Remove the two pre-set pegs.
