Product Details
＋
- Most suitable for automation assembly machines because it can be installed into the XY robot
- Stable torque accuracy helps uniform screw tightening for automation
- Easy to install to the existing system
- Safe and risk free low voltage DC30V
- All models have stepless torque adjustment
- RoHS compliant
Classification
- Product Group: Automation & Engineered Products
- Electric or Pneumatic: Electric
- Manual or Powered: Powered
- Low Voltage DC with Power Source or Direct Plug-in: DC
- Standard or Brushless: Standard
- ESD-Safe: No
Specifications

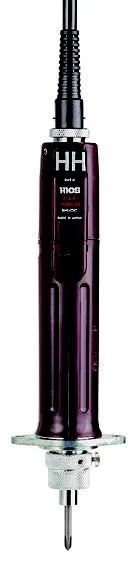

- Model No.: CLF-3000HH
- Torque: 0.3 to 1.3 lbf·in (0.3 to 1.5 kgf·cm) (0.03 to 0.15 N·m)
- Drive Type: In-line
- Drive Size: HIOS 4 mm
- Operation: Remote
- Approximate RPM:
- 1000 @ 30VDC
- 560 @ 20VDC
- Length: 7.17"
- Weight: 14.11 oz
- Dia.: 1.28"
- Screw Size (mm):
- 1.0 to 2.0 Machine Screw
- 1.0 to 1.7 Tapping Screw
