Product Details
＋
- Most suitable for automation assembly machines because it can be installed into the XY robot
- Stable torque accuracy helps uniform screw tightening for automation
- Easy to install to the existing system
- Safe and risk-free low voltage DC30V
- All models have stepless torque adjustment
- RoHS compliant
Classification
- Product Group: Automation & Engineered Products
- Electric or Pneumatic: Electric
- Manual or Powered: Powered
- Low Voltage DC with Power Source or Direct Plug-in: DC
- Standard or Brushless: Standard
- ESD-Safe: No
Specifications

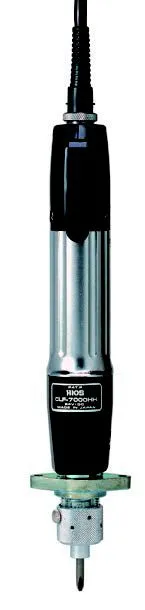

- Model No.: CLF-7000XH
- Drive Size: 1/4" Hex
- Drive Type: In-line
- Operation: Remote
- Torque: 4.3 to 13 lbf·in (5.0 to 15 kgf·cm) (0.5 to 1.5 N·m)
- Approximate RPM:
- 780 @ 30VDC
- 420 @ 20VDC
- Length: 10.47"
- Dia.: 1.46"
- Weight: 26.6 oz
- Screw Size:
- 2.0 to 4.0 Machine Screw
- 2.0 to 4.0 Tapping Screw
