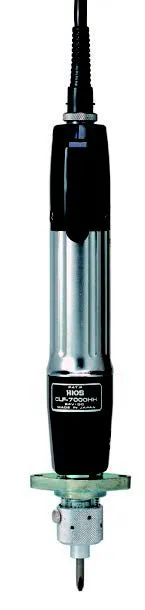

Product Details
＋
- Most suitable for automation assembly machines because it can be installed into the XY robot
- Stable torque accuracy helps uniform screw tightening for automation
- Easy to install to the existing system
- Safe and risk free low voltage DC30V
- All models have stepless torque adjustment
- RoHS compliant
Classification
- Product Group: Automation & Engineered Products
- Electric or Pneumatic: Electric
- Manual or Powered: Powered
- Low Voltage DC with Power Source or Direct Plug-in: DC
- Standard or Brushless: Standard
- ESD-Safe: No
Specifications
- Model No.: CLF-6500XH
- Drive Size: 1/4" Hex
- Drive Type: In-line
- Operation: Remote
- Torque: 3.5 to 9.0 lbf·in (4.0 to 10.0 kgf·cm) (0.4 to 1.0 N·m)
- Approximate RPM:
- 850 @ 30VDC
- 440 @ 20VDC
- Length: 9.21"
- Dia.: 1.46"
- Weight: 23.63 oz
- Screw Size (mm):
- 2.0 to 3.0 Machine Screw
- 2.0 to 3.0 Tapping Screw
